  מקלט רדיו FM קומפקטי לניתוח ובקרה של אותות רדיו, מבוסס DSP כולל ממשק ניהול WEB

מקלט רדיו FM קומפקטי לניתוח ובקרה של אותות רדיו, מבוסס DSP כולל ממשק ניהול WEB

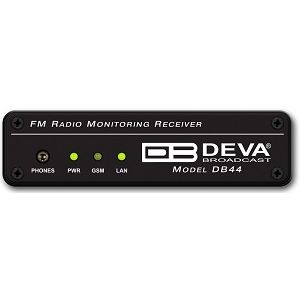

DEVA

DB44
Compact, Robust, Reliable and Clever - This is just a small part of all the advantages of our DB44 FM Radio Monitoring Receiver and Basic Modulation Analyzer. Based on the latest technology, the DB44's core is DSP based digital design for 24/7/365 operation.

FEATURES:

Fully DSP based core
Built-in Oscilloscope allowing Left, Right and MPX display
MPX Power measurement with data history
RF Spectrum analyzer allowing to check the RF Carrier parameters
MPX Spectrum analyzer for Left, Right and MPX measurements
Selectable De-emphasis – 50µs and 75µs
Built-in Stereo Decoder; Stereo Presence Detection
Date & Time Settings with various formats
LAN port for full TCP/IP remote control and monitoring
Up to 90dBµV direct RF Antenna Input
Adjustable alarms for RF, Deviation, Pilot and RDS signal
Firmware update for future-proof operation
Parameters Factory Restore Option
FM Band 87 - 108 MHz Basic Spectrum Analyzer
MPX, PILOT & RDS deviation meters
LEFT and RIGHT demodulated audio level meters
Headphones audio output
RDS and RBDS decoder with BER meter
Intuitive Application Interface
Alarm dispatch via E-mail, SMS, SNMP
Channel status reporting via SMS
RF and RDS Measurements
Remote Listening via optional GSM modem
Real Time Audio Program Streaming
Attractive price and very good price-performance ratio
Very Intuitive Embedded WEB server for interactive supervision
Proved and reliable hardware for 24/7/365 operating
Easy Installation and Setup
SNTP for automatic synchronization of the built-in clock
Compact and Robust Aluminum Case for high RF immunity

להדגמה של ממשק הבקרה וניהול לחץ כאן



קישור לאתר החברה

קטלוג מוצר
צור קשר לקבלת הצעת מחיר
