  יחידה לזיהוי שקט בשידור

יחידה לזיהוי שקט בשידור

Broadcast Tools

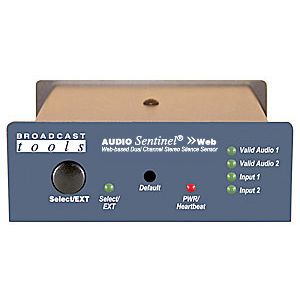

Audio Sentinel® >>Web
קומפקטי, כניסות ויציאות מאוזנות, ניתן לשליטה ופיקוח מרחוק על גבי IP, חיווי על גבי המכשיר ממשק ניהול WEB הכולל מערכת התרעה מתקדמת המאפשרת שליחת הודעות של עד 8 כתובות דואר אלקטרוני.

Three color audio LED meters for both stereo channels.

Transparent stereo program switcher with transfer switch,
indicator LED and SPDT position relay.

Two additional independent SPDT relays may be configured to perform user defined action sequences.

Email notification may be configured to alert up to EIGHT recipients when alarms are detected.

Email logging of system status, along with the site ID may be emailed in time spans from once an hour to once a day.

SNMP capabilities allow multiple units to be monitored.

Silence trip level detection from -24dB to -35dB in 1 dB
steps for each stereo channel.

Precise time delay from 0(OFF) to 65535 seconds (18 hours, 12 min and 15 sec’s). in one-second increments for each channel.

Restore time delay from 0(OFF) to 65535 seconds (18 hours, 12 min and 15 sec’s). in one-second increments for each channel.

Active balanced/unbalanced inputs.

Web enabled manual or automatic switch with indicator.

Web enabled switch bounce switch with indicator.

Front panel and remote input select and web enabled transfer input with front panel LED and web indicator.

Front Panel Power/Heartbeat LED

Built-in web server provides simple, web based
monitoring, configuration and control.

Control page can be customized with appropriate text.

10/100 baseT Ethernet connectivity.

Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.

Removable euroblock screw terminal connector simplifies wiring and service. Mating plugs are supplied.

Eight Usernames and Passwords may be configured for
up to three access levels.

Selectable TCP ports.

Supplied with domestic power supply.

Up to four Audio Sentinels may be mounted on the optional RA-1 rack shelf. Desk top and wall mounting is also possible



Discontinued
