  Decoder אודיו מוגבר על גבי IP

Decoder אודיו מוגבר על גבי IP

Sonifex

PS-AMP
פורס אודיו סטראופוני (Decoder) מקצועי על גבי תשתית אינטרנט (IP) עם זוג מגברים מובנה 15W D-class לחיבור ישיר לרמקולים. המכשיר אינו תלוי מחשב, עובד כיחידה עצמאית Stand Alone. היחידה מאפשרת העברה של נתוני RS-232 U ופיקוד GPIO לצורכי בקרה ושליטה מרחוק. ממשק הפעלה וניהול מבוסס WEB ללא צורך בתוכנה מיוחדת, תומך קידוד אודיו במגוון פורמים כמו PCM, G711, MP3 במגוון איכויות. ממשק USB לחיבור התקן חיצוני כמקור גיבוי.

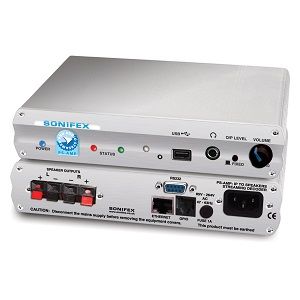

The PS-AMP is a freestanding unit which converts an IP audio stream directly to speaker outputs. It is also available in a 1U rack-mount as the PS-AMPS. The PS-AMP has the same feature-set as the PS-PLAY except that there are no individual audio outputs other than the speaker terminals. The PS-AMP uses an integrated 2 x 15W D-class amplifier to deliver audio directly to a pair of connected speakers.

Audio Codec Specifications Decoder
G.711 (U Law/A Law 8kHz to 48kHz sampling rate)
WAV (IMA ADPCM+ 16bit PCM uncompressed: 8kHz to 48kHz)
MP3 Layer 1 (32, 44.1 and 48kHz, CBR +VBR +ABR)
MP3 Layer 2 (16, 22.05 and 24kHz, CBR +VBR +ABR)
AAC+ (HE-AAC v2 Level 3, incl.SBR and PS)
Ogg Vorbis (floor 1)
WMA 4.0/4.1/7/8/9 all profiles (5-384kbps)

Supported Network Transport Protocols
RTP - UDP
HTTP - TCP
SIP
Raw UDP
Raw TCP
SNMP - traps for remote management
DHCP, BOOTP, IPZator or AUTOIP - Dynamic IP address resolution
SonicIP IP Address readout
