  יחידת אינטרקום "מוקשחת" על גבי IP

יחידת אינטרקום "מוקשחת" על גבי IP

Barix

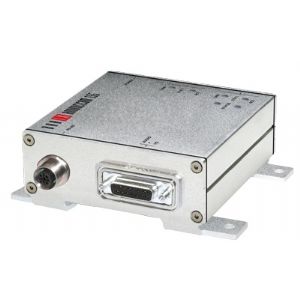

annuncicom 155
The Barix Annuncicom 155 is a ruggedized, universal IP Audio device, developed to operate within challenging environmental conditions whether outside or in rolling stock. With an amplified output suitable to drive 5W into an overhead paging or panel speaker, a sensitive microphone input, selector/contact closure inputs and control output the device is equally suitable for paging, intercom, help point and monitoring applications.

The Annuncicom 155 is a ruggedized, universal Audio over IP device designed to serve as a gateway between IP Paging, VoIP and Intercom systems and traditional microphone/speakers or amplifers. Supporting both music (MP3) as well as voice codecs (G.711, uLaw, aLaw) and a large number of protocols (including shoutcast, SIP etc), the device can be used for both surveillance as well as VoIP applications.

Applications
• Generic VoIP Intercom and Paging Device with speaker amplifier
• Voice Evacuation Systems
• Microphone Encoder for IP Audio Surveillance
• Help Point/SOS call box device
• Live IP Audio Encoder for Streaming Applications
• Generic, bidirectional full-duplex VoIP module for Paging and Intercom applications
• Digital Annunciator, Message Player, Message Repeater
• SIP and IP Paging Zone Device

FEATURES
•G711, uLaw, aLaw, PCM Encoding
•MP3 Encoding (low Latency)
•Audio Level Supervision with SNMP Trap generation
•IP Streaming via TCP, UDP, RTP, Multicast
•Microphone Input
•Line Level Output
•Amplified Output 8 Ohm (5W)
•Contact Closure Input (2)
•RS-485 Serial Port (1)
•Power Supply (not included)
•Supply Voltage (18..28V)
•Dual Ethernet
•Supervised Speaker/Mic and Control Interface
•IP65 rating, tested to EN50155, suitable for applications in rolling stock
•Wide operating temperature range (-40..+70'C), shock and vibration resistant
•Current sourcing Outputs (1)

Designed in Switzerland and being used in thousands of mission critical paging and intercom applications, the Barix Annuncicom series is the product of choice for IP based Paging, Intercom and VoIP applications worldwide.



קישור לאתר החברה

עלון המוצר
מחיר קטלוגי: 4590 ₪ (5370 ₪ כולל מע"מ)
צור קשר לקבלת הצעת מחיר
