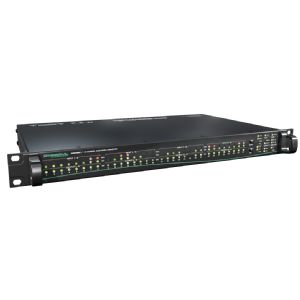

ממיר MADI אנלוג-לדיגיטל דיגיטל-לאנלוג AD/DA

MADI Ports (I/O)*:

2 x SC-Socket multi-mode
or
1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω

Analog (I/O):

8 x DSUB-25, balanced (TASCAM pinout)

Analog level (I/O):

+6 dBu / +15 dBu (digitally switchable) or
+9 dBu / +18 dBu (digitally switchable) or
+15 dBu / +24 dBu (digitally switchable)

A/D

SNR:

-115,5 dB RMS (20 Hz - 20 kHz) / -118 dB(A)

THD @ -1dBFS:

-113 dB

Frequency Response:

-0,15 dB (10 Hz) / -0,15 dB (20 kHz)

D/A

SNR:

-113,5 dB RMS (20 Hz - 20 kHz) / -116,5 dB(A)

THD @ -1dBFS:

-100 dB

Frequency Response:

-0,5 dB (10 Hz) / -0,15 dB (20 kHz)

Global

Word clock:

coaxial BNC (75 Ω termination switchable)

USB:

USB 2.0 for firmware updates and remote control

Sample rates:

44.1, 48, 88.2, 96 kHz (+/- 12,5%)

MADI formats:

48k / 96k Frame, 56 / 64 channel, S/MUX

Power supply:

2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant

Dimensions:

Width 19'' (483 mm)
Height 1 HU (44,5 mm)
Depth 10'' (254 mm)

Weight:

about 3 kg
