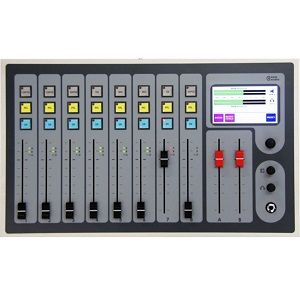

Eela Audio D3 table top / 19" digital mixing console
All digital "universal" broadcast mixing console with 8 input faders, 2 output faders and a touch screen color display.
Programmable channel on/off / start button for each input fader.
Inputs
6 balanced microphone inputs with 48V phantom powering, to be configured as studio or control room microphone.
2 AES/EBU digital inputs with built-in sample rate converter on XLR-type connectors.
16 stereo line inputs on RCA cinch connectors.
6 inputs can be switched between line 1, line 2 and microphone, 2 inputs between the 2 line inputs or AES/EBU.
E.Q., dynamics, input type, signal present indication etc. can be set individually per input.
Outputs
2 main stereo outputs balanced analogue and AES/EBU digital on XLR, dual tasking allowing for recording while on-air.
4 stereo analogue outputs on jack, these can be configured as a standard AUX, for hybrid cleanfeed
or studio foldback with talkback.
1 control room monitor output with volume control, mute and dim function.
1 headphones output with volume control and jack connector on the front panel and on the back.
Monitor and Meters
2 meters with PPM characteristics and individual source selector.
Control room monitor with volume control, source selector, mute and dim function.
Headphones output with volume control, independent source select and jack connector on the back and front panel
