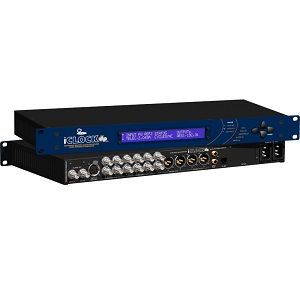

The iClock is a synchronizable, high-precision clock synthesizer which is designed to be the reference in digital audio and video studios as well as broadcast stations. Based on a totally new concept of frequency generation, developed by MUTEC, the unit offers an unchallanged flexibility for synchronization of different devices to one house clock. On this occasion iClock breaks traditional and unflexible forms of chaining input and output signals and allows for the first time their completely free combination and scalability.
Synchronizable reference clock synthesizer for PAL/NTSC video, Word Clock, AES11 and S/P-DIF syncs
High-accurate and lowest-jitter clock base with < 0.1ppm accuracy (when shipped)
Redundant (fail-safe) clock supply in all operation modes
DDS-based jitter elimination of incoming reference signals
Synchronization and generation of 36 different Word Clocks rates
DSD64, DSD128 + DXD clock rates standardly supported
Synchronization and generation of all AES3/11 and S/P-DIF clock rates up to 192.0 kHz
Generation of different pilot tones
No limitation of input assignment at the universal inputs
SoftReLock functionality for recurring reference signals
CYCLESYNC functionality for automatic re-synchronization between different references
Generation of multiple clock rates at the same time
Drop out compensation of incoming reference signals
Totally free scalability of all output clock signals
Automatically working signal management aligned to AES11 and EBU R83
Digital varispeed up to ±20% availabel during internal and external synchronization
Supports all US and European pull up/pull down rates for film, audio and video transfers
Follows external references up to ±20 % (reducible)
Eeasy and convenient operation through large display
Soft and hardware upgradeability and recalibratability
Front panel lock-out for preventing misuse
Built-in, internationally useable power supply

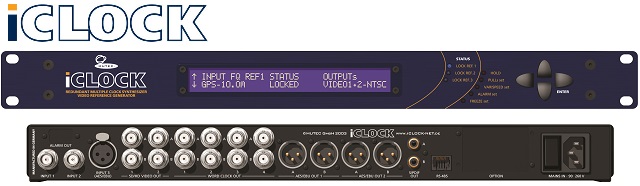

Interfaces
1 x XLR input for AES3/11, 110 ohms terminated, transformer
balanced
2 x BNC input for various references, 75 ohms terminated, unbalanced
4 x XLR output for AES3/11, terminated, transformer balanced, buffered
8 x BNC outputs for Word Clock, terminated, unbalanced, individually
buffered
4 x BNC outputs for video, terminated, unbalanced, individually buffered
2 x Cinch (coaxial) output for S/P-DIF, terminated, unbalanced, buffered
All digital audio inputs and outputs work between 16.0 kHz and 192.0
kHz.
