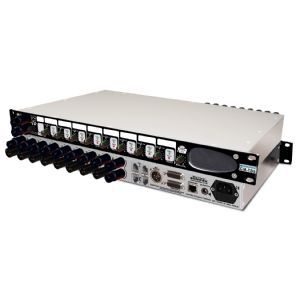

  יחידת טוקבק\IFB עד 8 ערוצים

יחידת טוקבק\IFB עד 8 ערוצים

Sonifex

CM-TB8
יחידת טוקבק עוצמתית וגמישה במארז 1U לשמונה ערוצי 4W או IFB, ניתנת לחיבור לכל יחידה סטנדרטית בתעשיה. אפשרות להרחבה לשני קווי טלפון או סלולר.




יחידת הטוקבק של Sonifex מאפשרת גמישות גבוהה מאוד ושליטה מתקדמת על ניתוב האודיו והתנהגות המערכת בפנייה אל ומ 8 מקורות שונים ו-2 מקורות אודיו קבוע (IFB).

  • 8 Channel talkback control unit in a 1U rack mount package.
  • Separate microphone and headset inputs with phantom power and individual gain settings.
  • Microphone talk level can be instantly adjusted or preset.
  • Talk level LEDs and built-in limiter.
  • Configurable ‘Group Talk’ function.
  • Interruptible Foldback and direct 4-Wire operation selectable on each channel with optional talkback-microphone mix function.
  • 2 external IFB (Interruptible Foldback) inputs available to each channel.
  • Optional telephone hybrid or GSM ports allow direct connection to a telephone line for remote communications.
  • Individual monitor level control for each channel.
  • Microphone output feed which is gain adjusted & level limited.
  • Ethernet connection for remote configuration with built-in web server.
  • 6 stored configuration templates with 4 user editable sets.
  • Front panel loudspeaker with separate feed for an external loudspeaker.
  • Loudspeaker mute and dim controls, also available on remote input.
  • Remote ‘tally’ outputs indicating when each channel is active.
  • Remote inputs providing a call indication on each channel.
  • Built in tone generator for channel identification.



קישור לאתר החברה

עלון המוצר
צור קשר לקבלת הצעת מחיר
