A MODULAR, CUSTOMIZABLE SYSTEM THAT'S EASY TO TRANSPORT.

REPLACE MODULES, NOT THE WHOLE SYSTEM

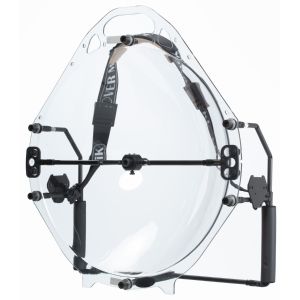

The patented modular design of the Klover MiK allows individual components to be replaced if they should become damaged.  In addition, the handles and microphone yoke have been designed to sacrifice themselves in order to protect the more expensive collector dish.

The modular design allows modules to be replaced to incorporate new features. The standard cross-bar can be easily replaced with a monopod/tripod mount (A monopod greatly reduces the strain on the operator). As a small, agile company we can accommodate your special requests. In large enough quantities, we can tint the reflector dish, or print your logo on it. We can also create a custom microphone yoke to accommodate that new microphone for your audio technician. If you have a special requirement, give us a call or send us a note and we will do our best to accommodate.

The Klover MiK’s collector dish is designed to be stacked so they can be transported without scratching the critical internal surface.

Crisp & Clear Audio Recording

The Klover MiK produces definition and clarity twice that of our competitor (according to the engineer who tested the first prototype). The “True” parabolic shape of the collector dish focuses all of the sound energy on a single point. The non-parabolic shape of our competitor’s dish focuses the sound energy on different locations. Only a small portion of the sound energy is focused on the microphone.

With most parabolic microphones, movement between components causes the plastic dish to generate unwanted, irritating squeaking noises that are picked up by the microphone. However, all of the Klover MiK 26’s connections incorporate vibration isolation components to eliminate these unwanted noises.

The Technology Behind The Clarity

Many parabolic microphones use reflector dishes that are not a true parabolic shape. The idea is to allow the microphone to be adjusted or “focused” to a particular target distance. For example, you can place the pickup microphone at a certain point if you want to focus in on sounds 100 feet away from the microphone and a different point if you want to focus in on sounds 300 feet away from the microphone.

However, in order to focus sounds arriving from different distances at different points the parabolic shape of the dish must be compromised. The result is that most of the sound is not focused on the electronic pickup.

How is Extraneous Noise Eliminated?

It is common for parabolic microphones to have two handles located on opposite sides of the dish with no support between them. As a result any movement of the handles causes the plastic dish to generate vibrations and unwanted noise that is picked up by the electronic microphone.

All connections to the Klover MiK 26’s dish incorporate vibration isolation components to eliminate these unwanted noises. In addition the handles are designed to be rigid so the operator cannot distort the dish.

Rapid motion of the dish can cause the pickup microphone itself to exert forces on the dish’s rim and create noise. We have incorporated vibration isolation components into the support for the Klover MiK 26’s pickup microphone so this noise is also eliminated.

On October 28, 2012 Jason Witten of the Dallas Cowboys crashed into a parabolic operator on the sidelines of Cowboy Stadium after an incomplete pass. The operator received 17 stitches caused by his eyeglasses being driven into his forehead. However, the operator was not injured by the Klover MiK itself, because the handles broke exactly as designed. (The dish itself was not damaged and the unit was back in use the next weekend.)

The audio signal produced by a parabolic microphone is greatly influenced by the operator that is using it. If the operator is not looking down the length of the pickup microphone they will not be pointing the microphone with any accuracy. If the operator is fatigued he is less likely to be using the microphone properly. In order to reduce fatigue and discomfort the design of the Klover MiK considered operator comfort. Parabolic Microphone Operators. The weight has been minimized by using carbon fiber components.

In addition, a contoured neck pad has been incorporated. We have also simplified the adjustment of the neck strap by utilizing cam operated strap adjusters. This allows the operator to quickly and easily make minor adjustments to maximize comfort. Lastly, the handles of the Klover MiK provide both a horizontal and vertical grip position. This feature allows the operator to alternate hand positions to reduce fatigue.

KM-26-TE parabolic microphone flight caseThe Klover MiK can be assembled and disassembled in just seconds. This saves time and money.

The modules that make up the Klover MiK are connected using durable, easy to operate, quick-release connectors. The neck strap is attached using quick release buckles and can be quickly adjusted by the operator using Cam operated adjusters.

Zip Tie slots are also provided for securing electronic equipment and cables.

The higher the transmitter can be located the better the RF signal will be. Obstructions on the sidelines, such as people and equipment, can block the signal being transmitted back to the mixer.  A mounting location at the very top of the collector dish allows the transmitter to be located at the highest possible location – without sacrificing the upper handle
