  כבל מתאם לחיבור מיקרופון חיצוני USB-C

כבל מתאם לחיבור מיקרופון חיצוני USB-C

Luci

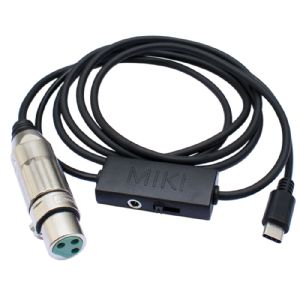

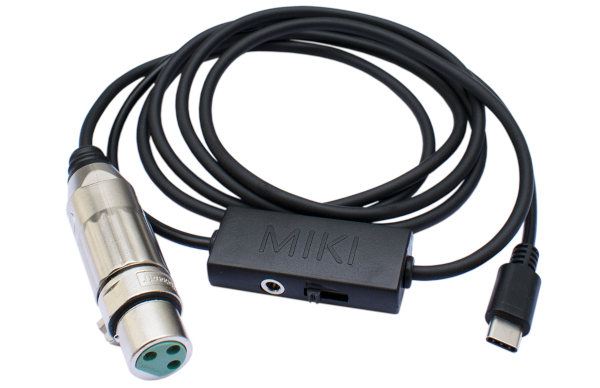

MIKI-D Type C
MIKI הדרך הפשוטה ביותר לחבר מיקרופון חיצוני ואוזניות למכשיר נייד. מאפשר לחבר מיקרופון דינמי למחשב או לטלפון הסלולארי באיכות גבוהה, הכבל בשימוש גופי השידור הגדולים בעולם (BBC, RTL, BNN ועוד רבים..) מתאים לשקע USB-C.


KEY FEATURES

    • A single cable which connects a microphone, headphones and mobile device provides the ultimate solution for portable, high quality recording and playback.
    • Full duplex, simultaneous recording and playback.
    • Zero delay monitoring of -post processing- Mic input in headphone output, mixed with playback.
    • Includes 2 metres of professional microphone cable with integrated preamp, producing an overall gain of +72dB, and high quality headphone output.
    • Features an integrated three-position slide switch which allows the user to select between 3 different DSP channel strip presets.
    • Any dynamic or battery-powered microphone can be used.
    • Carefully selected audio components deliver best in class sound quality.
    • Compatible with Windows, macOS, iOS and most newer Android devices.
    • Seamless operation with LUCI LIVE, LUCI LIVE Lite and other live broadcasting software, ensuring the perfect input level for all recordings.
    • No batteries or extra cables are required for exceptional microphone recordings.
    • A weight of just 100 grams means MIKI Digital is unnoticeable in the user’s bag.
    • Natural, transparent analogue sound with high quality DSP, including Lo-cut, Phase, Parametric EQ, Gate and Limiter, ensures any microphone will always sound the same, whatever the circumstances or platform.
    • Outstanding quality DSP algorithms focused on mobile recording and broadcasting.
    • Saving presets within the device means its sound, colour and response can be adjusted with a simple slide switch. Presets can be adjusted and stored in the device via the intuitive MIKI-D Control application for macOS and Windows.
    • Flexible architecture means two MIKI-D interfaces can be cascaded and used simultaneously in one system. Created with sport commentators in mind who, in many cases, need separate microphones.
    • Lockable gain ensures no surprise gain changes anymore when the user switches apps or OS.
    • Bus powered – no need for external power or batteries.

CONFIGURATION

  • Metal Switchcraft XLR connector for microphone.
  • USB-C connector.
  • Stereo 3.5 mm socket for headphones.
  • No mechanical/moving parts in the audio signal paths for pristine audio quality and zero degradation over time.
  • Acrylic capacitors for distortion free audio.
  • All settings stored in device memory, so the connected microphone will sound the same on every device or OS.
  • Three presets stored in device memory, selectable via a slide switch on casing.
  • Designed and manufactured in The Netherlands.

AUDIO SPECIFICATIONS

  • 32/64-bit Digital Signal Processing
  • 24+1 Bit, up to 96kHz audio conversion
  • Microphone sensitivity up to -66 dBU Full Scale
  • Up to 24-bit USB audio support
  • Ultra low latency, 1ms USB bus latency at all sample rates
  • EIN: -113 dBU (150 Ohm, A-weighted)
  • Dynamic range: 115 dB at +6dBU FS input sensitivity
  • THD+N: 0.01%
  • Max input level: +6 dBU
  • Frequency response @44.1 kHz: 20 Hz – 20000 Hz
  • Frequency response @48 kHz: 20 Hz – 24000 Hz
  • Frequency response @96 kHz: 20 Hz – 48000 Hz
  • Overall gain: 0dB to +72dB

PLATFORMS AND SOFTWARE

  • Windows, macOS, iOS and most modern Android devices.
  • Free MIKI-D control software (available for Windows and macOS) to set up MIKI-D presets and upgrade MIKI-D firmware.
  • USB 1.1 and 2.0 Class compliant. No drivers required for Windows, macOS, iOS and Android.
  • Compatible with all LUCI Software
