  כבל A/D לחיבור מיקרופון למחשב

כבל A/D לחיבור מיקרופון למחשב

Luci

uMi

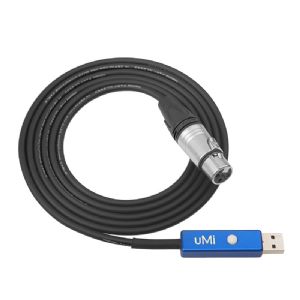

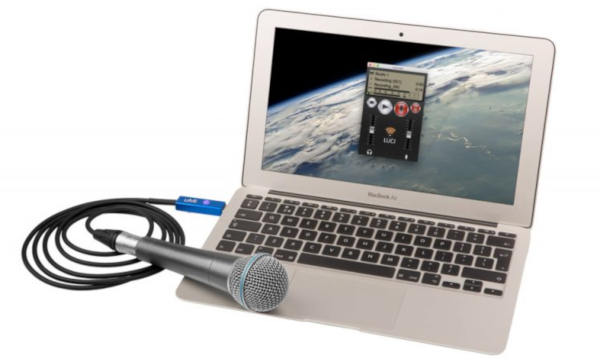

כבל ממיר מאנלוג לדיגיטל עם פרה-אמפ מובנה ועיבוד דיגיטלי לחיבור מיקרופון למחשב (או למכשירים ניידים באמצעות מתאמים)



KEY FEATURES

  • Elegant, robust hardware design using advanced manufacturing processes have produced an outstandingly durable unit, able to be used in the harshest of environments.
  • Natural, transparent analogue sound with high quality DSP, including Lo-cut, Phase, Parametric EQ, Gate and Limiter, ensures any microphone will always sound the same, whatever the circumstances or platform.
  • Outstanding quality DSP algorithms focused on mobile recording and broadcasting.
  • Saving presets within the device means its sound, colour and response can be adjusted with a simple push of a button. Presets can be adjusted and stored in the device via the intuitive uMi Control application for Mac OS and Windows.
  • Carefully selected audio components deliver uncompromising 24+1 bit/192 kHz sound quality with the lowest THD and high dynamic range.
  • Compatible with iOS, Android, Mac OS and Windows.
  • Flexible architecture means two uMi interfaces can be cascaded and used simultaneously in one system. Created with sport commentators in mind who, in many cases, need separate microphones.
  • Lockable gain ensures no surprise gain changes anymore when the user switches apps or OS.
  • Bus powered – no need for external power or batteries – with adjustable phantom power.



CONFIGURATION

  • CNC machined, laser trimmed aluminium casing
  • No mechanical/moving parts in the audio signal paths for pristine audio quality and zero degradation over time.
  • Acrylic capacitors for distortion free audio.
  • 0.1% precision thin film resistors.
  • High quality Mogami Neglex quad microphone cable for enhanced RF/EM shielding and improved signal to noise cancelling (10 to 20 dB).
  • Adjustable Phantom power (0V to 12V), suitable for most phantom powered microphones.
  • All settings stored in device memory, so the connected microphone will sound the same on every device or OS.
  • Two presets stored in device memory, selectable via a preset button on casing.
  • Designed and manufactured in The Netherlands.



AUDIO SPECIFICATIONS

  • 32/64-bit Digital Signal Processing
  • 25 Bit, up to 192kHz audio conversion
  • Microphone sensitivity up to -82 dBU Full Scale
  • Up to 32-bit USB audio support
  • Ultra low latency, 1ms USB bus latency at all sample rates
  • EIN: -130 dBU (150 Ohm, A-weighted)
  • EIN: -132 dBU (0 Ohm, A-weighted)
  • Dynamic range: 108 dB ( A-weighted)
  • THD: 0.0003% (- 42 dBU input level, maximum gain)
  • THD+N: 0.003% (– 32 dBU input level, maximum gain)
  • Max input level: -22 dBU
  • Frequency response @44.1 kHz: 20 Hz – 20000 Hz
  • Frequency response @48 kHz: 20 Hz – 24000 Hz
  • Frequency response @96 kHz: 20 Hz – 48000 Hz
  • Frequency response @192 kHz: 20 Hz – 70000 Hz
