  מצלמת PTZ - Full HD

מצלמת PTZ - Full HD

multiCAM

MCAM II
Full-HD picture with HD-SDI connector and IP H.264 stream. NDI stream available with special license.

Full-HD picture with HD-SDI connector and IP H.264 stream.
NDI stream available with special license.

IMAGE QUALITY

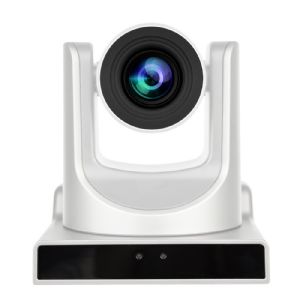

The PTZ Camera mCAM II is equipped with a professional 1/2.7 inch image sensor with Full HD 1080p output resolution. The sensor provides high color reproduction, high-definition signals, and crystal-clear image quality.

EASY INTEGRATION

With IP control and power supplied through the PoE+ (Power over Ethernet), this camera can be installed at a reduced cost, and the MULTICAM system is able to drive a large set of cameras without additional hardware. Thanks to the additional licence MULTIROOM, you can switch between configurations using different sets of cameras.

Control via Visca or IP interface to control the camera - you can use this camera with IP Box and a single ethernet cable for video signal, camera control and power supply.

Available in White and Black.



Specifications:

  • Sensor – 1/2.7” 2MP CMOS
  • Video Output – 1080p 60 / 59.94 / 50 / 30 / 29.97 fps, 1080i 50 / 60 fps, 720p 60 / 59.94 / 50 fps
  • Optical Zoom – x12
  • View angle – 72.5°
  • Panning Angle – -170° ~ +170°
  • Tilting Angle – -30° ~ +90°
  • Preset Positions – 255
  • POE – PoE+ (IEEE802.3af)
  • Camera Control – RS-232 / RS-422 / Ethernet
  • Focal length – f = 3.5 ~ 42.3 mm
  • Aperture – F1.8 ~ F2.8
  • Minimum Object Distance – 1.2m
  • Weight – 1.35kg
