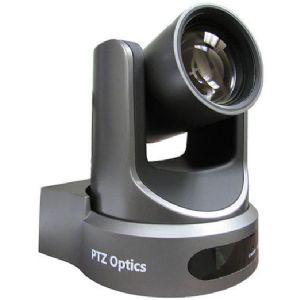

  מצלמת PTZ-SDI

מצלמת PTZ-SDI

PTZ Optics

SDI PTZ
מצלמות PTZ בפרוטוקול SDI, בזום אופטי של 12, 20 ו- 30X



SDI 12x/20x/30x Technical Specifications

Video Outputs Video Outputs (1) Video over Ethernet (1080p@60fps capable)
(1) 3G-SDI (up to 1080P@60fps capable)
(1) HDMI (up to 1080p@60fps capable)1
(1) CVBS2
USB 2.03
Connectors (1) 3G-SDI (BNC – 75 Ohm, Female)
(1) HDMI v1.3 Type A (Female)
(1) 10/100/1000 RJ-45
(1) Non-powered 3.5mm Female Input
Aspect Ratios 4:3, 16:9
Standard Resolutions PAL, PAL wide, NTSC, NTSC Wide
Output Resolution Range 480i-30 to 1080p60
Frame Rate Up to 60 fps
IP Streaming Video Bitrate Range: 32 – 20480 kbps
Maximum 1080p Frame Rate 60fps
Maximum 720p Frame Rate 120fps
Audio Bitrate Options: 96K, 129K, 256K
AAC Audio Encoding
Audio Sample Rate Options: 44.1K, 48K
Recommended maximum Cable Length for SDI (based on standards) 300 ft
Recommended maximum Cable Length for HDMI (based on standards) 45 ft
Recommended maximum Cable Length for Ethernet (based on standards) 328 ft
Camera and Lens Video Sensor Panasonic 1/2.7” CMOS, 2.07 Megapixels
Scanning Mode Progressive
Frame Rates Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 (Beta)
CVBS Only (576i-30, 480i-30)
Focal Length 12x Optical, F3.5mm-42.3mm, F1.8-F2.8
20x Optical, F3.5mm-42.3mm, F1.8-F2.8
30x Optical, F3.5mm-42.3mm, F1.8-F2.8
Zoom Length 12X Optical, 20X Optical or 30X Optical
Digital Zoom 16x
Field of View 12X Lens – 72.5°
20X Lens – 60.7°
30X Lens – 60.7°
Min Lux 0.5 Lux at F1.8, AGC ON
Shutter Speed 1/30s – 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 12X Lens – 6.9° (tele) to 72.5° (wide)
20X Lens – 2.28° (tele) to 60.7° (wide)
30X Lens – 2.28° (tele) to 60.7° (wide)
Vertical Angle of View 12X Lens – 3.9° (tele) to 44.8° (wide)
20X Lens – 1.28° (tele) to 34.1° (wide)
30X Lens – 1.28° (tele) to 34.1° (wide)
Wide Dynamic Range Supported
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual
Digital Noise Reduction 2D & 3D Digital Noise Reduction
Audio Analog audio inputs Line In, 3.5mm (HDMI & IP Stream Only)
Networking DHCP Supported
Static IP Supported
Multicast Supported
Dual Streaming Supported
720p120fps Supported
HTTP Port Number Default 80
RTSP Port Default 554
PTZ Port Default 5678
UDP Port Default 1259
Web Management Supported
Guest & Admin Logins
Camera Control (1) 8-pin mini din In RS-232, RS-485, VISCA, PELCO-D/P
(1) 8-pin mini din Out (passthrough) Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line
(1) RS-485 2-pin phoenix port
Protocols: VISCA/Pelco-D/Pelco-P
Baud Rate 2400/4800/9600 bits
IP PTZOptics VISCA over IP4
Recommended maximum cable length for RS-232 90 feet (30 meters)
Recommended maximum cable length for RS-485 3,600 feet (1,200 meters)
Pan & Tilt Movement Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
PTZ Presets 10 via IR (255 via Serial or IP)
255 presets via Serial or IP
Horizontal Pan Range ±170°
Vertical Pan Range -30° to +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
Preset Accuracy 0.1°
Electrical Index Power Supply 12W (Max)
Input Voltage 12V DC (10.8 – 13.0V DC) or PoE 802.3af
Power over Ethernet Standard PoE supported
Physical Specifications Dimension (in.) 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt)
Dimensions (mm) 142W x 164H x 169D (189H max w/ Tilt)
Box Dimensions 9” x 9” x 10” | 229mm x 254mm x 229mm
Camera Weight 3.05 lbs. (1.38 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
Regulatory Compliance FCC compliance: FCC 47 CFR Part 15 Subpart B – Class A:2011, ANSI C63.4-2014
CE compliance: EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017
1H.264, H.265, MJPEG Encoding; RTSP; RTMP; NDI|HX® upgradeable
2Not simultaneous with SDI or HDMI outputs; SD only (576i-30, 480i-30)
3Future Use (provides 5W of power)
4TCP (5678); UDP (1259)
*PLEASE NOTE: The 30x is unable to perform 1080P@60 over the IP Stream & SDI / HDMI simultaneously. This camera can output HDMI & SDI at 1080p60fps with a 1080P@30, or lower, IP stream or with an IP stream at 1080P@60 and the HDMI and SDI outputs set for 1080@30 or lower.
