Image Quality

Equipped with a professional image sensor with 4K UHD 30 fps and Full HD 1080p 60fps output resolution  providing high color reproduction, high definition, and a crystal-clear image.

Advanced Image Processing

The advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom & capture function.

Support HDBaseT Interface

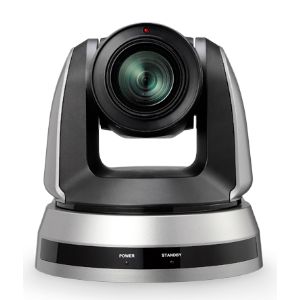

The VC-A70H 4K Ultra HD PTZ camera has a HDBaseT interface. The camera only needs one CAT5e/6 cable for its power supply, control and video output. This feature not only simplifies the installation process, it also reduces system integration costs.

HDMI and HDBaseT Image Output Simultaneously

The VC-A70H supports HDMI and HDBaseT interface allowing two simultaneous image outputs with the best possible image quality.

Built-in Tally Light

The VC-A70H built-in tally light. The LED lights turn on when the camera is in operation. This is an essential function for a broadcast studio or any applications with more than two PTZ cameras.

Panoramic Viewing Angle

The VC-A70H has a panoramic 74° horizontal field of view that helps users achieve a wider viewing area.



SPECS & DETAILS

Sensor

1/2.3” 9MP CMOS

Video Output

3840 x 2160p 29.97 / 25 fps，1080p 59.94 / 50 fps，1080i 59.94 / 50 fps，720p 59.94 / 50 fps，NTSC / PAL

Optical Zoom

12x

Clear Image Zoom

1.67x(4K:20x)

2.0x(1080P:24x)

Digital Zoom

12x

Video Output Interface

HDBaseT, HDMI

Horizontal Viewing Angle

74°

Panning Angle

-170° ~ +170°

Tilting Angle

-30° ~ +90°

Preset Positions

128

Panning Speed

300°/sec

Tilting Speed

300°/sec

Video S/N Ratio

> 50dB

Shutter Speed

1/1~1/10,000

Focal Length

3.9mm~46.8mm

Aperture

F1.8~F2.0

Tally Light

Yes

PoE

Yes(IEEE802.3af)

Camera Control Interface

RS-232C/RS-422

Camera Control Protocol

VISCA, PELCO D

Minimum Illumination

3.0 lux (F1.8, 50 IRE, 30 fps)

Minimum Object Distance

10 (Wide) ~ 1500 (Tele) mm

Gain Control

Auto, Manual

White Balance

Auto, Indoor, Outdoor, One-Push, Manual

Exposure Control

Auto, Manual

Focus System

Auto, Manual

WDR

Yes

Image Flip

Yes

3D NR

Yes

Power consumption

Power On : 13W

Standby : 7W

Dimensions

174 x 170.2 x 186.8 mm (6.9” x 6.7” x 7.4”)

Weight

2.0 Kg

Package Contents

Instruction for installation

Remote Control

Power Cord

Power Adapter

RS-422 Connector

Metal Plate A

Metal Plate B

M3 Screws
