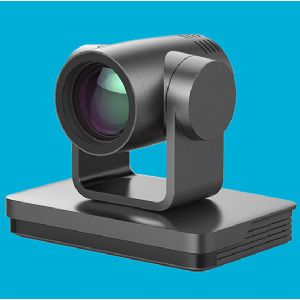

  מצלמת PTZ Full HD

מצלמת PTZ Full HD

Minrray

UV570
מצלמת PZT באיכות Full HD, זווית צילום רחבה, תומכת במספר פרוטוקולים



Key Features:

 Superb High-definition Image

UV570 adopts 1/2.8 inch, 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.

 Multiple Optical Zoom Lens

5X,10X,12X,20X and other optical zoom lens for options. The lens adopts 83.7° wide angle without distortion.

 Leading Auto Focus Technology

Leading auto focus algorithm makes lens auto focus more quickly, accurately and stably.

 Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. The adoption of advanced 2D/3D noise reduction technology not only further reduces the noise, but also ensuring image sharpness.

 Multiple Audio Output Interfaces

Support HDMI, SDI, CVBS, USB2.0, USB3.0, LAN; HDMI, SDI, LAN interfaces support audio and video simultaneous output; SDI supports to transmit 100 meters under the 1080P60 format.

 Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression, AAC, MP3 and G.711A audio compression and 1920x1080 resolution with frame rate up to 60fps compression; Support 8000, 16000, 32000, 44100, 48000 sampling frequency.

 Audio and Video Storage

USB2.0 interface supports U disk storage function, real-time recording and storage.

 Built-in gravity sensor

Built-in gravity sensor, support the automatic flip function of the gimbal, convenient for engineering installation.

 Multiple Network Protocols

Support ONVIF, GB/T28181, RTSP, RTMP protocols , RTMP push mode, which is easy to link streaming media server (Wowza, FMS), RTP multicast mode and network full command VISCA control protocol.

 Control interface: RS485, RS232; RS232 support cascade, easy to install and use.

 Multiple Control Protocol

Support VISCA, PELCO-D, PELCO-P protocols and Automatic identification protocol.

 Extremely Quiet PTZ

Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.

 Low-Power Sleep Function

Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.

 Multiple Preset: Support 255 preset positions (the remote controller is set to 10preset positions).

 Multiple Remote Controller

Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference.

 Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems
