  יחידת שדרים \ טוקבק DANTE

יחידת שדרים \ טוקבק DANTE

Glen Sound Electronic

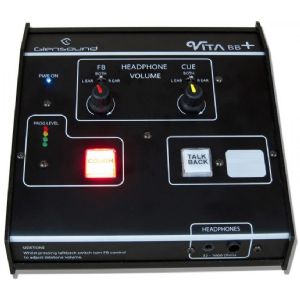

VITA BB+
יחידת שדרים וטוקבק ניתנת לשליטה על גבי פורמט DANTE



The VITA BB PLUS is a very powerful Dante network audio interface, in a traditional desktop style.  It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits.  One of these is typically used as an on air channel, and the other as a talkback channel.

The high quality microphone input, with the Glensound Referee compressor,  makes the Vita BB Plus suitable for on air commentary use,  perfect for a small OB or in an off-tube booth.

The flexibility of the talk button configurations, means that the Vita BB Plus can also be used as a talkback unit as part of a Dante / AES67 network.

The Vita BB Plus can connect to any Dante or AES67 network, or to other audio equipment via Glensound’s own Dante interface units.

  • Complete commentary functionality and 4W in a desktop format
  • Large Format Illuminated Front Panel Switches (BIG BUTTONS (BB))
  • Dante/ AES67 AoIP network
  • Input is switchable from line, mic, or mic + 48v phantom power
  • Low noise, high headroom mic amplifier
  • 48K 24bit A/D converter
  • Headphone output on 6.35mm jack socket
  • Two outputs: one for main programme audio, one for talk back circuit, are both on the single RJ45/CAT5 network audio connection
  • Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
  • Two inputs for headphone monitoring from network audio connection, both with adjustable level
  • Headphone inputs have left/both/right switching
  • Glensound intelligent headphone amp provides correct output levels into low or high impedance headphones and can also correctly drive mono earpieces with mono jack plugs.
  • Powered via PoE


קישור לאתר החברה

עלון המוצר
צור קשר לקבלת הצעת מחיר
