מצלמות PTZ HD

Ultra HD, Wide viewing angle, Electronic pan/tilt, Multi-protocols

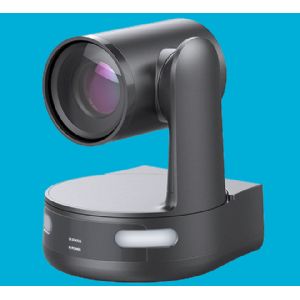

UV401 Ultra HD 4K camera has perfect functions and superior performance, which adopts advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition.

Key Features:

4K Ultra HD Image

UV401 adopts 1/2.5, 1/1.7 inch, 12.40 megapixel high quality SONY CMOS sensor. Resolution is up to 4K with frame rate up to 60fps.

Multiple Optical Zoom Lens

12X optical zoom lens offer 82.6°/ 80.4° wide angle without distortion.

Leading Auto Focus Technology

Leading auto focus algorithm makes lens auto focus more quickly, accurately and stably.

Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. The adoption of advanced 2D/3D noise reduction technology not only further reduces the noise, but also ensuring image sharpness.

Multiple Video Output Interfaces

Support HDMI, USB3.0, LAN. HDMI, LAN support audio output.

Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression, AAC, MP3 and G.711A audio compression and 3840×2160 resolution with frame rate up to 60fps compression.

Audio Input Interface

Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, G.711A audio coding.

Built-in gravity sensor

Built-in gravity sensor, support the automatic flip function of the gimbal, convenient for engineering installation.

Multiple Network Protocols

Support ONVIF, GB/T28181,RTSP, RTMP protocols, RTMP push mode, which is easy to link streaming media serve (Wowza, FMS), RTP multicast mode and network full command VISCA control protocol.

Control interface

RS422(compatible with RS485), RS232; RS232 support cascade, easy to install and use.

Multiple Control Protocol

Support VISCA, PELCO-D, PELCO-P protocols and Automatic identification protocol.

Multiple Preset

Support 255 preset positions (the remote controller is set to 10 preset positions).

Multiple Remote Controller

Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference. Support remoter signal pass through function, which is convenient for back-end use.

Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

Brushless Motor

Built-in brushless DC motor with Variable Speed Technology, which make pan/tilt features extremely quiet PTZ, super speed, high accurate presets, closed-loop control etc.

מצלמת PTZ Ultra HD 4K

Minrray
