  מקודד\פורס אודיו על גבי תשתית IP

מקודד\פורס אודיו על גבי תשתית IP

DEVA

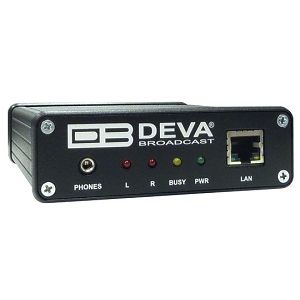

DB90- Tx\Rx
The DB90-RX is an integrated client for IP transmitted digital audio signal, designed to support HE-AAC and MPEG-1 Layer 3 compressed audio streams, and PCM uncompressed stream for audio transmission without quality loss. Thanks to the powerful DSP processor, the decoding process is performed in real time and the audio is available at both the digital and the analog outputs. The DB90-RX utilizes one main and two backup audio sources. You can choose between IP Audio, Icecast, and the RTP Audio Player. Of course, the source priority is user-defined. If the audio signal of the main source disappears, the device will switch to the first available backup source and vice-verse: when the main audio signal is recovered, the DB90-RX will automatically switch back to it. The DB90-RX, in combination with the easy to use WEB Interface (accessible via any standard WEB browser and OS), can be used for Broadcast, Internet Radio, and Studio to Transmitter Link.

Tx:

•High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
•32 kHz, 44.1, 48 and 96 kHz sample rates support
•Up to 56 kbps bitrate for HE-AAC
•Up to 320 kbps bitrate for MPEG-1 Layer-3
•Up to 3072 kbps for PCM
•6 LEDs and Phones output for quick diagnostics
•IP address pronunciation at startup (through the headphones)
•DHCP Client automatically assigning Network Settings
•Full Control and easy setup via a standard web browser
•UPnP for easy discovery in Local Networks
•Shoutcast / Icecast compatible TCP/IP stream
•Analog Audio Input (2 x RCA connectors)
•Digital Audio Input (RCA Connector)
•RJ-45 Ethernet Connector
•Up to 10 simultaneously connected clients

לקטלוג המוצר לחץ כאן
לאתר המוצר לחץ כאן
Rx:

•High Quality HE-AAC (v.1 and v.2), MPEG-1 and MPEG-3 Decoding
•32 kHz, 44.1, 48 and 96 kHz sample rates support *
•Support of all standard bitrates and VBR as well
•6 LEDs and Phones output for quick diagnostics
•IP address pronunciation at startup (through the headphones)
•DHCP Client automatically assigning Network Settings
•Easy setup via a standard web browser
•UPnP for easy discovery in Local Networks
•Shoutcast / Icecast compatible TCP/IP stream
•Auto switching to another server in the event of a connection loss
•Analog Audio Input (2 x RCA connectors)
•Digital Audio Input (RCA Connector)
•RJ-45 Ethernet Connector
* 96 kHz is supported for uncompressed PCM stream only.

לקטלוג המוצר לחץ כאן
לאתר המוצר
לחץ כאן



קישור לאתר החברה

קטלוג מוצר
צור קשר לקבלת הצעת מחיר
