  קונסולת שידור דיגיטלית

קונסולת שידור דיגיטלית

WHEATSTONE

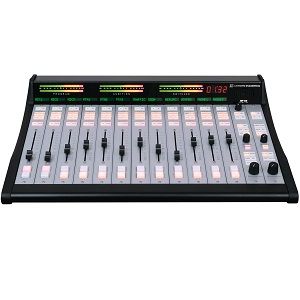

IP-12
The IP-12 offers a great way for a small to medium radio operation to enter the world of networked audio. Tapping into the power of WheatNet-IP Intelligent Network technology through the use of the included ip88cb Console Audio BLADE, it’s a perfect low-cost, small-footprint solution.

Control Surface

  • 12-fader compact control surface
  • 4 stereo program busses
  • LED source name displays
  • LED-illuminated switches
  • A/B source selector on each channel strip
  • Guarded channel ON/OFF switches
  • Control room and studio monitor outputs with independent level controls
  • Headphone output with built-in amplifier and level control
  • CUE bus with built-in amplifier and speaker
  • Three pairs of bright, 30-segment bargraph meters
  • Four event switches
  • Six programmable buttons
  • Individual channel talkback with master talkback
  • On-board timer
  • Uses the ip-88cb Console Audio BLADE, WheatNet-IP compatible
  • Modular control surface design

Audio Engine

  • Integrated I/O Mix Engine Blade
  • 2 Mic Preamps with phantom power and gain trim w/ XLR inputs
  • 4 Stereo (8 Mono) Analog Line Inputs on RJ45
  • 4 AES Inputs on RJ45
  • 4 Stereo (8 Mono) Analog Line Outs on RJ45
  • 4 AES Outputs on RJ45
  • Cue and Headphone Outputs on RJ45 and 1/4” jack
  • Control Room and Studio Monitor Outputs on XLRs
  • 12 Programmable Logic Ports
  • 1 RU Enclosure
  • Front panel metering for all busses and outputs
  • Gigabit port for connection to WheatNet-IP network
