  10-Input Multi-Format Presentation Switcher with Stereo Audio

10-Input Multi-Format Presentation Switcher with Stereo Audio

Kramer Electronics

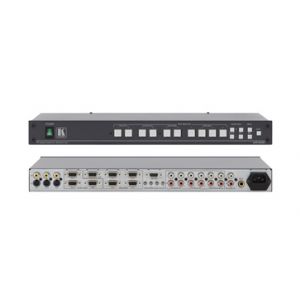

VP-23C
The VP-23C is a 2x1 composite or SDI video, a 2x1 s-Video (Y/C), a 2x1 component (YUV) and 4x1 computer graphics video switcher, each with unbalanced stereo audio. It is designed for a wide variety of presentation and multimedia applications.

  • High Bandwidth 400MHz (-3dB) computer graphics video, 380MHz (-3dB) component (YUV) video, 310MHz (-3dB) s-Video (Y), & 310MHz (-3dB) composite video.
  • Video Connectors CV (RCA), Y/C (4-pin), Component/VGA (15-pin HD) & VGA/UXGA (15-pin HD).
  • Audio Connectors 3.5mm mini jack for computer graphics & RCA for all others.
  • HDTV Compatible.
  • Audio Level (Gain) Control for Master Output.
  • Microphone Input Level Control.
  • Master Audio Output Input selectable.
  • Microphone Mix Button.
  • Mute Master Output Button.
  • Flexible Control Options Front panel & RS-232 (K-Router™ Windows®-based Kramer software is included).
  • Front Panel Lockout.
  • Worldwide Power Supply 100-240V AC.
  • Standard 19” Rack Mount Size 1U. Rack “ears” included.
