  16x16 Composite Video Matrix Switcher (230MHz)

16x16 Composite Video Matrix Switcher (230MHz)

Kramer Electronics

vs-1616v

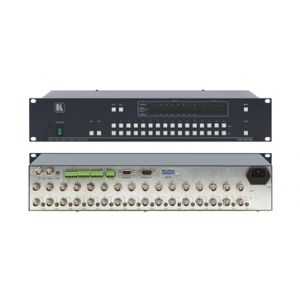

The VS-1616V is a high-performance matrix switcher for composite video signals. It can also be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS switcher

  • Bandwidth 230MHz (-3dB) fully loaded.
  • Multi-Mode Operation Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or a 4x4 RGBS switcher.
  • Looping Inputs and Sync.
  • Selectable Input and Sync Signal Termination.
  • Control Front panel, RS-232 (K-Router™ Windows®-based Kramer software is included), RS-485, contact closure, & IR remote (included).
  • Take Button Executes multiple switches all at once.
  • Memory Locations Stores multiple switches as presets to be recalled and executed when needed.
  • Standard 19” Rack Mount Size 2U.
