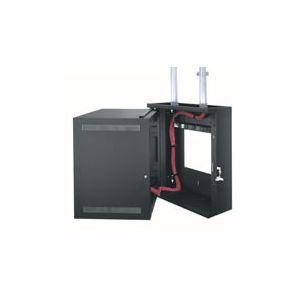

   Sectional Wall Mount Rack

Sectional Wall Mount Rack

MIDDLE ATLANTIC

EWR Series
Aggresively Priced Sectional Wall Mount Rack for Smaller Systems

  • Tool-Free Quick-Mount™ system allows for easy, one-person mounting of the center section to the backpan on the jobsite
  • Welded construction provides 150 lb. weight capacity
  • Available in 15” and 20” useable depths
  • Center section hinges for left or right opening
  • Abundant lacing points throughout the interior facilitate cable management
  • ½”, ¾”, 1” & 1 ½” electrical knockouts and 5/8” UHF/VHF antenna knockouts on top & bottom, easily removable for cable pass-through
  • 10 ½” x 10 ½” laser knockout opening in the backpan for electrical pull-box
  • Durable black textured powder coat finish











  • 17" Deep
    (15" Useable)
    Part #**
    22" Deep
    (20" Useable)
    Part #**
    With Solid Front Door
    Racking Height
    Weight Capacity
    Overall Height
    Power Strip
    17" Deep
    (15" Useable) Part #
    22" Deep
    (20" Useable) Part #
    EWR-16-17EWR-16-22EWR-16-17SDEWR-16-22SD28" (16 space)
    150 lbs.
    35"
    EWR-12-17EWR-12-22EWR-12-17SDEWR-12-22SD21" (12 space)
    150 lbs.
    28"
    EWR-10-17EWR-10-22EWR-10-17SDEWR-10-22SD17 1/2" (10 space)
    150 lbs.
    24.5"
    EWR-8-17EWR-8-22EWR-8-17SDEWR-8-22SD14" (8 space)
    150 lbs.
    21"


    Part #
    Solid Front Door
    Plexi Front Door
    Vented Front Door
    Add'l 10-32 Threaded Rackrail
    EWR-8-17/22
    FD-8
    PFD-8
    EVFD-8
    DWR-RR8
    EWR-10-17/22
    FD-10
    PFD-10
    EVFD-10
    DWR-RR10
    EWR-12-17/22
    FD-12
    PFD-12
    EVFD-12
    DWR-RR12
    EWR-16-17/22
    FD-16
    PFD-16
    EVFD-16
    DWR-RR16

    Rackrail Bracket Extender
    Convert the EWR to full front to rear adjustable rackrail



    Part #
    Fits
    EWR-ARB-17
    17" deep EWR's
    EWR-ARB-22
    22" deep EWR's
