Barix

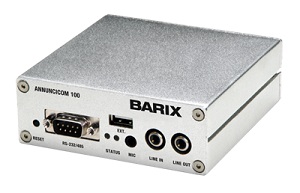

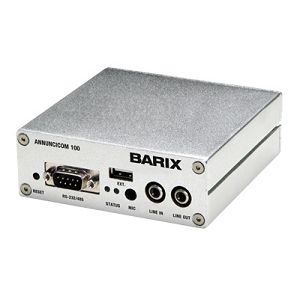

Annuncicom 100

Versatile IP Intercom and PA device, with two contact closure inputs and built-in relay.

The Annuncicom 100 is a versatile Audio over IP device designed to serve as a gateway between IP Paging, VoIP and Intercom systems and traditional microphone/speakers or amplifers. Supporting both music (MP3) as well as voice codecs (G.711, uLaw, aLaw) and a large number of protocols (including shoutcast, SIP etc), the device can be used for both background music as well as VoIP applications.

Applications

• VHF Radio Controller and interface to IP / RoIP applications

• Microphone Encoder for IP Audio Surveillance

• Door Intercom Controller, VoIP based

• Help Point/SOS call box device

• Classroom VoIP device with built-in amplifier, talkback, serial port

• Paging and Audio Distribution with Amplifier control and monitoring

• Live IP Audio Encoder for Streaming Applications

• Generic, bidirectional full-duplex VoIP module for Paging and Intercom applications

• Digital Annunciator, Message Player, Message Repeater

• SIP and IP Paging Zone Device

• SIP Tel Hybrid for Broadcast Studios applications

• 4 Wire Point To point over IP audio bridge

• E&M SIP device

FEATURES

•G711, uLaw, aLaw, PCM Encoding

•MP3 Encoding (low Latency)

•AACplus, MP3, Ogg Vorbis, G.711, uLaw, aLaw, PCM decoding

•Shoutcast/Icecast Source capability

•Audio Level Supervision with SNMP Trap generation

•IP Streaming via TCP, UDP, RTP, Multicast

•Microphone Input

•Line Level Input

•Line Level Output

•Amplified Output 8 Ohm (2W)

•Relay Output (1)

•Contact Closure Input (2)

•RS-232 Serial Port (1)

•RS-485 Serial Port (1)

•Power Supply (12V, included)

Designed in Switzerland and being used in thousands of mission critical paging and intercom applications, the Barix Annuncicom series is the product of choice for IP based Paging, Intercom and VoIP applications worldwide.
