32 קדם מגבר מיקרופון, 32 יציאות אנלוגיות, המרה לממשק MADI, ניתוב ושליטה מלאה, עם יכולת שרידות מלאה.

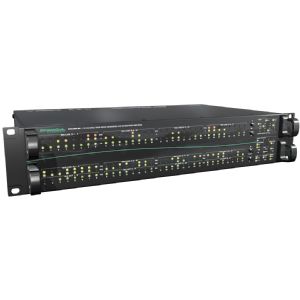

D.O.TEC® ANDIAMO.MC is a 32 channel microphone amplifier with MADI interface and 32 line outputs. Sophisticated design and a high level of integration form a compact sized housing with only 2 HUs.

The device can be operated locally or via remote control. Supported remote methods are USB, ‘MIDI over MADI’ and ‘Serial over MADI’.

The input sensitivity ranges from mic level (- 55 dBu) to line level (+ 30 dBu) - phantom power and a 30 dB PAD are switchable.

Quick overview
The front panel provides status LEDs for all channels for a quick check of signal condition of all input and output channels.

Port Redundancy
ANDIAMO.MC is equipped with two MADI ports by default, offering seamless port redundancy. Both MADI outputs always carry identical signals.

Clocking
Selectable clock sources are word clock, MADI input or the internal clock. The current system clock is provided at the word clock output at any time.

GPO
Four GPOs may be configured individually in order to monitor critical system events or to trigger a recording light.

Safe operation
All devices of the D.O.TEC® ANDIAMO series offer highest reliability through two phase-redundant power supplies with inlets and switches on the rear panel.

Select the port configuration to match your needs:
