ממיר אות אודיו MADI מקואקסיאלי לאופטי

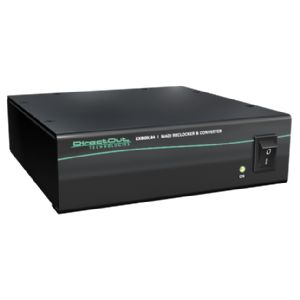

D.O.TEC® EXBOX.64 is an active signal converter and reclocker for MADI signals. With two MADI I/Os (1 x optical and 1 x coaxial) MADI signals can be converted from optical to coaxial and vice versa. The input signals - which are not required to be in sync to each other - are cross patched to the corresponding output. The output signal is reclocked at the output.

Bittransparent

The frame structure of the input signal is kept unchanged. So even proprietary adaptions of MADI (AES10) will pass the unit unmodified.

Safe operation

Two external power supply units with solid Hirose connectors provide safe operating conditions with redundancy.

Range extension

The output signal of the coaxial port is refreshed electrically. With a short connected optical I/O the range of BNC cabling may be extended.

Noiseless

No signal will be output unless a valid input signal has been detected at the corresponding input port.
