מטריצות AV

הכלי המושלם לניתוב של אותות וידאו ואודיו בפורמטים שונים. מטריצת וידאו 8x8 לניתוב בפורמט 3G/HD/SD-SDI עם יכולת המרה לאותות מתבנית אחת לאחרת, מטריצת אודיו דיגיטלי גמישה עם אפשרות ניתוב של 384x384 ערוצים בפורמט MADI/AES/RAVENNA, ממשק ניהול מבוסס HTML5 הניתן לשליטה ישירות מתוך דפדפן האינטרנט, עם תמיכה במסך מגע. Embedding & De-Embedding, Sample Rate Converters, Color-Corrector, עובד על שני ספקי מתח לשרידות מלאה.

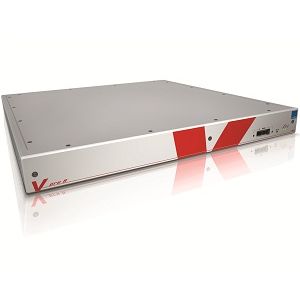

Powerful tools for video processing

Frame-Synchronizer for the integration of any video sources into the video channel.
RGB Color-Corrector and Proc-Amp to adjust the video signal to specific color requirements.
High-quality algorithms guarantee perfect video signals.
High-quality Cross Format Converter for the conversion of video signals to any relevant broadcast format (for instance, productions in 1080P can be converted into 1080i, 720P, and480i at the same time).
Thumbnails to provide previews of video signals on the V__pro8's GUI. The thumbnails can be accessed through Ethernet and can be displayed on an external remote system or on your mixing console in the future.
Monitoring functions for perfect control over all video signals.
Using Quadsplit, an additional video output displays up to four video sources at the same time, while Waveform and Vectorscope Displays enable evaluation of video adjustments in the V__pro8's GUI.
The features are complemented by two 5.1 stereo downmixes for each embedder as well as up to 320 ms delay/mono channel.

The most important highlights — everything at a glance

Embedding and de-embedding for 8 video channels
Integrated Sample Rate Converters
Two 5.1 to stereo Downmixer per Embedder
Variable audio delay of up to 320 ms for each mono channel
Variable video delay of up to 8 frames for each channel
Video Frame Synchronization for each channel
RGB Color Correction & Proc Amp for all video channels
Up to 2 (3) channels Up/Down/Cross Format & AR Conversion
Time Code Insertion, Test Pattern Generator and Video ID Generator per video output
QuadSplit-Monitoring
Multi-Format Video Output

Technical specifications

Video Signal Input/Output

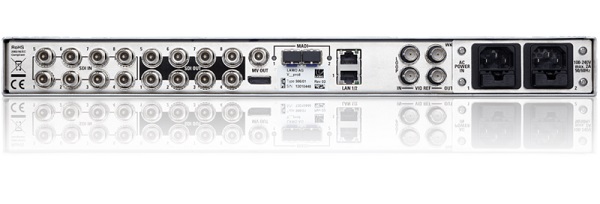

8x 3G/HD/SD-SDI inputs via BNC connector
8x 3G/HD/SD-SDI outputs via BNC connector
1x 3G/HD-SDI MV output via BNC
Display Port for local MV monitoring

Reference Signal Input/Output

BB, Tri-Level, WordCLK input via BNC connector
Loop thru, WordCLK, BB output via BNC connector

Audio Signal Input/Output

2x MADI/AES10 optical in/out with LC connector via SFP module (front/back)
RAVENNA (future option)

Network Input/Output

2x RJ45
Gigabit Ethernet

Control & Monitoring

Web-interface
EmBER (future option)
VSM control (future option)
Front LED status indication

Latency

SRC disabled, synchronized operation: < 2 msec
Format conversion: 1 frame incl de-interlacing
QuadSplit-Monitoring: 1 frame

מערכת ניתוב ועיבוד ערוצי אודיו/וידאו דיגיטלי קומפקטית

LAWO
