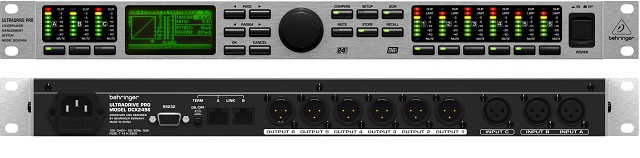

3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)
Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
Several types of EQs (LP/BP/HP) for each input and output
"Zero"-attack Limiters on all output channels for optimal speaker protection
Four different mono and stereo output operating modes
Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences
Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal
Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces
Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
60 user-defined internal presets storable
Servo-balanced, gold-plated XLR connectors for all inputs and outputs
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
