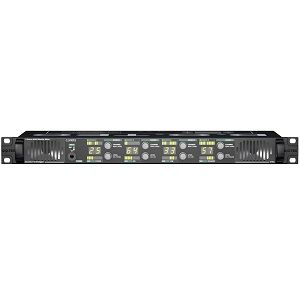

יחידת מוניטור בקרה לMADI

MADI ports (I/O)*:

1 x coaxial BNC**, 75 Ohm
1 x optical SC-Socket multi-mode
1 x SFP (empty cage without module)

AES3 port (I/O):

1 x DSUB-9 (requires optional XLR adaptor)

Line Output:

1 x DSUB-9 (requires optional XLR adaptor)

Output Level:

max. +24 dBu @ 0 dBFS

SNR:

-114.5 dB / -117.3 dBA

THD+N:

-105.5 dB

THD:

-108 dB

Headphone Output:

6.3 mm TRS jack, stereo

Output Level:

max. +18 dBu @ 0 dBFS

SNR:

114.2 dB / 117.1 dBA

THD+N:

-103 dB

THD:

-106 dB

Speakers:

2 speakers 2 W / 4 W (rated / max)
Class-D power amplifier

Mean SPL

81 dB (1 W / 1 m)

Sample rates:

44.1, 48, 88.2, 96 kHz (+/- 12.5%)

MADI formats:

48k / 96k Frame, 56 / 64 channel

USB

USB socket (Type B)

Power supply:

84 V to 264 V AC / 47 to 63 Hz /
safety class 1 (C13 connector)

Power Consumption:

10 W (typical)

Dimensions:

Width 483 mm
Height 44.5 mm
Depth 200 mm
