Barix

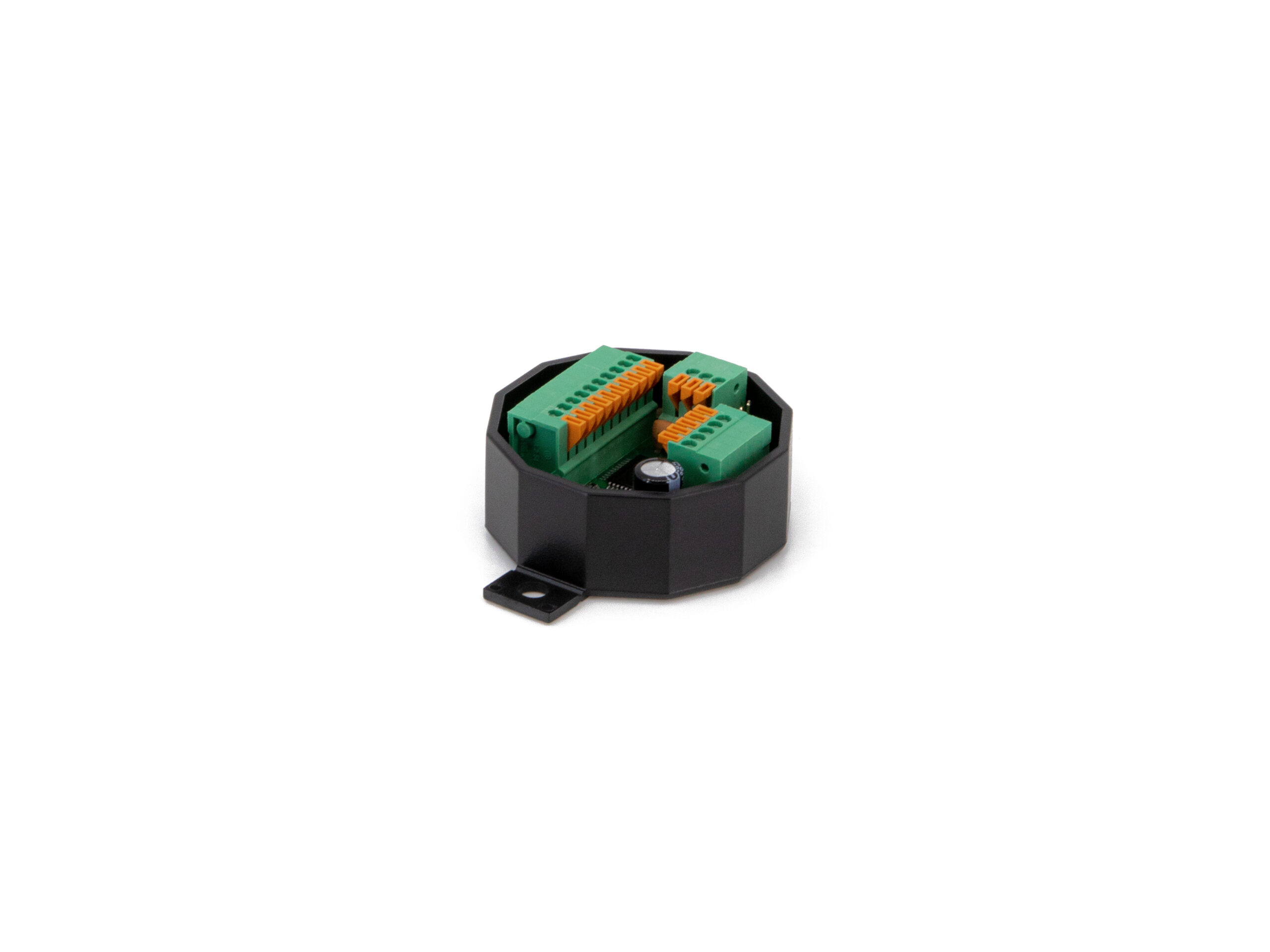

Modbus remote I/O module with RS485 Modbus/ RTU interface, 8 universal (analog or digital) TTL level inputs or outputs. Suitable also as a Wiegand converter or 1-wire temperature sensor interface to Modbus/RTU. The Barix X8 is a universal Modbus I/O module with serial RS-485 Modbus/RTU interface. Eight universal inputs or outputs can be independently programmed to act as digital or analog inputs with a programmable pull-up resistor, or as digital outputs. The X8 can be used to interface to I/O, wiegand enabled readers/keypads or Dallas 1-wire temperature sensors. It can be used as a general-purpose Modbus I/O module or it can be interfaced to the Barionet using the Barionet’s built-in RS-485 interface and BCL code to implement the Modbus/RTU message protocol.

The Barix X8 is a universal, low cost, small form factor I/O extension device which connects to a host via Modbus/RTU. The eight universal, TTL level Input/Output pins can be configured to specific functionalities, such as interfacing to Wiegand Readers or Dallas 1-wire temperature sensors.

Applications
• Voice Evacuation Systems, 8TTL general Purpose
• Temperature monitoring, logging and HVAC control

FEATURES
•General Purpose I/O (8)
•RS-485 Serial Port (1)
•Supply Voltage (9-30V)
•Wiegand Interface capable

Designed in Switzerland and installed in thousands of locations internationally, the Barix control products have proven themselves as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.

קישור לאתר החברה

מדריך למשתמש

יחידת הרחבה 8 IN/OUT ל- BARIONET
