Master Clock

ידוע ששעון ראשי Master Clock משנה את איכות הצליל של התקני שמע דיגיטליים לרמה גבוהה יותר. זה מה שהאלגוריתם החדש של השעון של MUTEC יחד עם טכנולוגית 1G-Clock מבצע ב+MC-3. מתאים לאולפני וידאו ואודיו, ה+MC-3 מבצע גם המרה של תדר דגימה משעון חיצוני, המרה מAES3 and S/P-DIF, מגיע עם 6 יציאות Word Clock BNC, יציאה AES, יציאת SPDIF, ויציאה COAX.

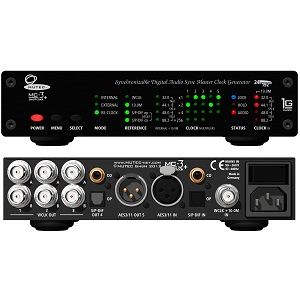

The +MC-3 Smart Clock is developed to significantly improve the audiophile quality of connected digital audio devices in two ways: At first by clocking devices with ultra-low-jitter Word Clock signals and secondly by aggressively re-clocking incoming digital audio signals.

Incorporates MUTEC's unique 1G-Clock technology for lowest jitter possible

Improves audiophile quality of any connected digital audio device

Re-clocks digital audio most aggressively

Raises clearly audible the sound quality of any DA converter

Eliminates digital "Clicks and Pops"

Enhances existing master clocks

Digitally-compensated clock accuracy for highest precision of the generated clocks

Locks to 10 MHz clock signals of so-called Atomic clocks or GPS receivers

Outputs clock signals fail-safe in any state of operation

Generates Word Clocks, Super Clocks, AES3 + S/P-DIF blanks simultaneously

Converts between AES3 and S/P-DIF as well as between AES11 and Word Clock

New-designed, simple user interface

Front panel lock-out for preventing misuse

Rack-space-saving 9.5" housing

Built-in, international power supply

Interfaces

1 x BNC input for Word Clock + 10 MHz, 75 ohms termination switchable, unbalanced

1 x XLR input for AES3/11, 110 ohms terminated, transformer balanced

1 x Optical input for S/P-DIF, Toshiba Toslink™, EIAJ RC-5720

1 x Cinch input (coaxial) for S/P-DIF, 75 ohms terminated, unbalanced

6 x BNC outputs for Word Clock, terminated, unbalanced, individually buffered, adjustable in pairs

1 x XLR output for AES3/11, terminated, transformer balanced, buffered

1 x Cinch (coaxial) output for S/P-DIF, terminated, unbalanced, buffered

1 x Optical output for S/P-DIF, Toshiba ToslinkTM, EIAJ RC-5720

Frequency Synthesis and Basis Clock Generation

MUTEC's proprietary, high-resolution 1G-Clock technology based on the latest and highest clocked DDS process

Digitally-compensated basis clock accuracy of

Operating temperature 0 °C to +50 °C

Power Supply

Type: Internal switching power supply

Input Voltage: 90 V – 260 V (automatic adjustment), 47 Hz – 440 Hz

Power Consumption: max. 10 W

Mechanical Details

Cover size/material/color: 196 x 42 x 156mm without connectors (W x H x D), 1 mm steel sheet 1 mm, black powder-coated

Front panel size/material/surface: 198 x 44 x 4mm (W x H x D), aluminium, anodized

Weight: approx. 1260 g
