Features
Supports SD/SDHC/SDXC cards
Maximum number of tracks recorded simultaneously: (4)
Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
TASCAM HDDA microphone preamps provide legendary audio performance
Input levels can be adjusted independently

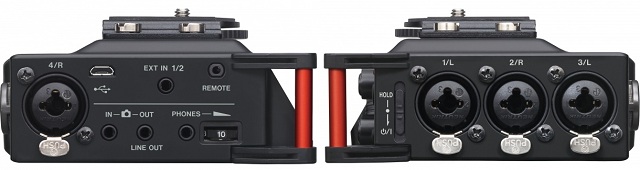

XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)
Supports mics requiring plug-in power, and mics with high output (1-2)
CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
High-quality audio output through the line output jack that is independent of the headphones jack
Headphone jack with 20mW+20mW maximum output
Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
Transport and SLATE buttons are made of rubber to prevent handling noise during use
HOLD switch prevents accidental operation
128x64-pixel graphic LCD with backlight
High-speed transfer of files to a computer using USB 2.0
Micro-B USB cable included
Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P515U) or USB cable provided with the unit (USB bus power).
BP-6AA external battery pack (sold separately) makes operation for even longer times possible
RC-3F footswitch or RC-10 wired remote control (both sold separately) for remote control
Built-in mixer can be used to adjust Pan and Level to mix output of (4) channels
Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
Delay function to adjust for distances between mics (+/−150 ms)
Mid-side decoding function enables the use of mid-side stereo mics
Slate tone functions (automatic/manual)
Selectable slate tone insertion points (recording start or recording start and finish when using the automatic slate function)
Playback can be skipped to the slate tone insert position using the DATA dial
File name format can be set to use a user-defined word or date
Dual recording function allows two files to be recorded simultaneously at different levels (second file at between −1 dB and −12 dB)
Can start a new file automatically when a maximum file size is reached to continue recording
Track incrementing function allows a file to be split by creating a new file during recording when desired
Resume function remembers the playback position when the unit is turned off
