  מקלט מקצועי FM-HD ו- AoIP

מקלט מקצועי FM-HD ו- AoIP

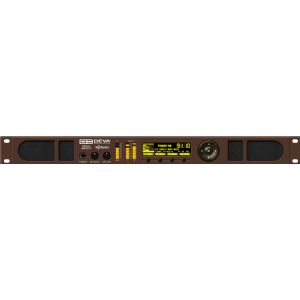

DEVA

DB3011
מקלט מקצועי לבקרה ושידור FM ב-HD ו- AoIP מבוסס DSP


• FM/HD Radio DSP-based Tuner 87.1 - 107.9MH
• Up to 100 dBµV direct RF Antenna Input
• Selectable wide range IF filter bandwidth
• HD Radio PAD (Program-Associated Data) Information
• Provision for PAD data analysis and Logging
• Selectable De-emphasis - 50µs and 75µs
• RDS and RBDS decoder with BER meter
• Built-in WEB and FTP server, easy to use WEB interface
• Apple and Android devices support
• Headphone output with front panel level control
• Advanced Internet Radio Monitoring Capabilities
• Automatically decodes MP3, RTP and PCM IP Audio
• Support of all standard bitrates and VBR as well
• SHOUTcast / ICEcast compatible
• Automatically displays live metadata for all standards
• Adjustable alarms for Stream Loss and Internet Loss
• DSP controlled, high efficient class-D switching amplifier
• Accurate 3-way speaker system
• Two mid/high frequency speakers for excellent stereo imaging.
• Active crossover for perfect separation between mid-range and bass bands
• Magnetically shielded drivers that allows placement next to video monitors
• SNTP for automatic synchronization of the built-in clock
• Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
• Professional AES/EBU Digital audio output
• LAN port for full TCP/IP remote control and monitoring
• Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels
• Alarm dispatch via E-mail, SNMP ver.2C and GPO



צור קשר לקבלת הצעת מחיר
