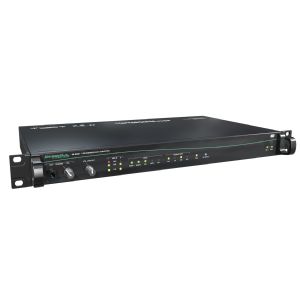

ממיר MADI - SoundGrid

• MADI Ports (I/O): 2 *  ports - individually configurable:

 - SC-Socket multi/single-mode

 - coaxial BNC, 75 Ω

 - SFP (empty cage without module)*

• SoundGrid®: 2 x RJ45 Socket (Gigabit-Ethernet),  128 audio channels
• Microphone Input: 2 * XLR female, PAD switchable (20 dB), phantom power switchable (P48)
• Line Output: 2 x XLR male, +24 dBu, balanced with trim controller
• Headphone Output: 1 x 6.3 mm TRS jack, unbalanced with trim controller
• Word Clock (I/O): 2 x coaxial BNC (75 Ω termination switchable)
• Sample Rates: 44.1, 48, 88.2, 96 kHz
• MADI Formats (I/O): 48k Frame, 96k Frame, 56/64 channel, S/MUX
• GPI: 2 * Voltage input via DSUB-9
• GPO: 2 * MOSFET switch via DSUB-9
• Power Supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1
• Dimensions: Width 19’’ (483 mm), Height 1 RU (44.5 mm), Depth 10’’ (254 mm)
• Weight: about 4 kg

* optional accessory: SFP modules (LC single-mode or multi-mode)
