יחידת טוקבק 4 ערוצים Dante

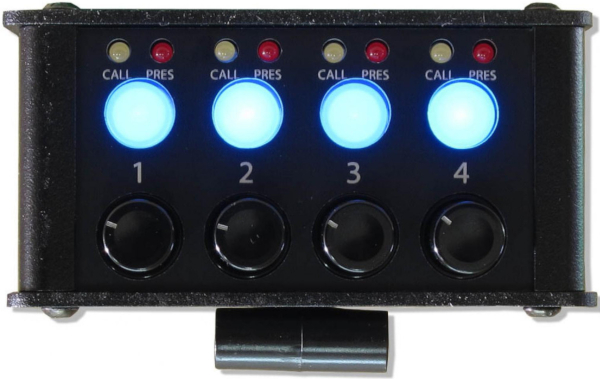

The Beatrice B4+ is Glensound's first Broadway design unit, with 4 x FW & 4 x IFBs to the Dante/AES67 Network. The B4+ can interfacewith 4 completely separate network locations.

The deisgn of the B4+ is ultra compact to make the unit as unobtrusive to the operator as possible.

The microphone input is on a 3 pin XLR and features gain adjust and 48V phantom power. The XLR connector can be specified with 4 or 5 pins for headset connections.

Four separate talk buttons route the microphone input to either of the 4 network outputs. The button operation can be configured as momentary, latching or intelligent. A double tap on any of the talk buttons will produce a 'call' signal alert that will be received by another Beatrice unit. An LED indicates an incoming call alert, which will also produce an audio indication on the headphones.

Each input has a separate level control adjust and a signal present indicator.
