  מגבר כריזה קטן אך עוצמתי

מגבר כריזה קטן אך עוצמתי

Revolution Acoustics

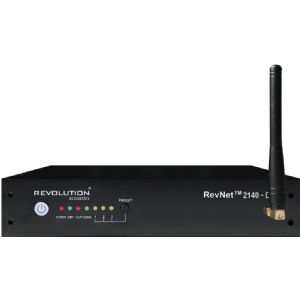

RevNet 2140(-D)
מגבר בהספק 140W*2 או מגבר קו 280W 70/100V. שני ערוצי כניסה ליין או DANTE.

Here’s the “Swiss Army Knife” of small amplifiers. The RevNet™ 2140 and RevNet™ 2140-D give you the power, versatility and quality you need for both commercial and high-end residential installations. One RevNet amp will power two speakers. Units may be daisy-chained for larger applications, and the RevNet 2140-D has the added power of full Dante® compatibility with AES67 support.

Quality

Loads of headroom with 26 dB gain, coupled with the lowest distortion you’ll find on any comparable pro audio amp. Audiophile-quality RevNet amps are suitable for both pro audio and high-end HiFi operation.

Powerful

140 watts per channel (280 W in mono) will power nearly any installed speaker in the room. RevNet amps can be used in 4/8/16 Ohm or 70/100V installations

Easy to Install

Fast-wiring Phoenix connectors allow you to quickly pre-wire sources and then just plug them into the amp.

Versatile Control

Direct RVC connections along with USB, TCP/IP, WiFi or Dante make it easy to manage your audio sources and volume.

Onboard DSP for Easy Configuration

A built-in sound masking generator allows you to quickly configure the amp for corporate uses, while 30 band EQ and RMS compressor bring you complete control over the sound of the room.

SpecificationsRevNet 2140(-D)
Configurations 4/8 /16Ω or 70/100V
Power Output 2x140W low-Z; 1x280W high-Z
Control Options WiFi, LAN, USB, Dante® (2140-D)
DSP processes/EQ 30 band EQ with auto-EQ mode; RMS compressor; overflow limiter; sound masking generator
Frequency Response 20Hz – 20kHz (+0/-0.25 dB)@ 8Ω
Connectors Input: Euroblock; Output: Euroblock
Regulatory cNEMKOus, CE, RoHS
Weight 7.00 lbs (3.18 kg)
Dimensions 1/2 RU 1.73” H x 11.00” W x 8.70” D (43.9mm H x 279.4mm W x 220.9mm D)

Specifications

  • 2 x 140W@16/8/4 , 100V/70V @280W
  • Phoenix connectors for Inputs/Link Output, Amp Out and RVC
  • TCP/IP and USB interfaces along with Integrated WiFi for remote control and set up
  • Built-in sound masking generator
  • 30 band fully customizable DSP
  • In-Room AutoEQ and mobile app support
  • 2 x 140W@16/8/4 , 100V/70V @280W
  • Phoenix connectors for Inputs/Link Output, Amp Out and RVC
  • Dante® (with AES67 support) and USB interfaces along with Integrated WiFi for remote control and set up
