  רמקול משטח מהפכני

רמקול משטח מהפכני

Revolution Acoustics

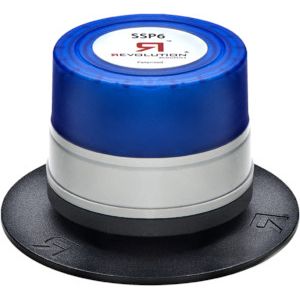

SSP6 Multiducer™
דרייבר רמקול מהפכני המשתמש במשטחים (קירות, קירות גבס, תקרה, חלונות זכוכית ושולחנות) כדי לצור סאונד עוצמתי ואיכותי



A Revolution in Speaker Technology.

The patented SSP6 Multiducer™ (Multifunctional Transducer) brings a revolution to not only invisible audio, but all kinds of installed speaker applications. Its sheer performance with high fidelity audio, high power handling and constant SPL throughout a listening space mean it’s the perfect speaker for sound masking, conference rooms, retail, restaurant, hospitality, house of worship, transportation and other commercial uses; its performance combined with fully invisible installation make it ideal for high end residential use.

The SSP6 Multiducer is a new class of product for transforming rigid surfaces – walls, ceilings, tables, windows, vehicles, and other surfaces – into full range audio speakers. It employs a different subset of acoustical physics – bending wave physics – giving you a true Distributed Mode Loudspeaker (DML) with no hot spots or off-axis high frequency dropoffs.



The SSP6 is UL certified for use in plenum spaces and IP66 rated for extreme weather and marine applications.

The Revolutionary Choice for Sound Masking.

Because coverage is so broad and even, a single SSP6 unit can take the place of up to 9 “emitters” traditionally used in sound masking applications – saving money not only in equipment costs, but in labor and wiring. Combine it in 70V mode with our revolutionary RevNet 2140 amplifier, which incorporates a customizable sound masking generator, and you can install a comprehensive sound masking system for at a surprisingly low cost.

Read more about how to use the SSP6 in sound masking.

SpecificationsSSP6 Multiducer
Impedance 8Ω (70.7V and 100V compatible)
Frequency Response 45Hz – 20KHz (unequalized)
Max Power 200W (instantaneous peak)
Max Continuous Power 24W unenclosed, 15W enclosed
IP Rating IP66 Certified – water and dust proof
Regulatory UL 2043 listed
Weight 1.50 lbs (0.68 kg)
Dimensions 2.10” H x 2.70” W (53.5mm H x 69.0mm W)

Expanded Specifications

  • Frequency range full bandwidth: (unequalized) 45Hz – 20KHz
  • Subwoofer not required
  • Power handling up to 200W (instantaneous peak)
  • Compact 2.7” Ø X 2.1” high (69mmØ X 53.5mm high)
  • Weight (Individual): 0.68 Kg / 1.5 Lbs.
  • Impedance: 8Ω
  • Recommended amplifier per channel wattage: 60W – 120W
  • Max. Continuous Thermal Power: 15 W totally enclosed, 24W unenclosed
  • Transducer Accelerated Life test: fully enclosed passes EIA 426B at 9.4V (recommended amplifier power rating of 30W) 8 hour test 23C ambient
  • Transducer Accelerated Life test: unenclosed passes EIA 426B at 12.0V (recommended amplifer power rating of 48W) 8 hour test 23C ambient
  • IP66 Ingress protection certified – water and dust proof
  • Packaging: 2 per box
  • Package weight: 1.55 Kg / 3.5 Lbs.


קישור לאתר החברה

דף נתונים
צור קשר לקבלת הצעת מחיר
