DANTE/AES67

TRACT

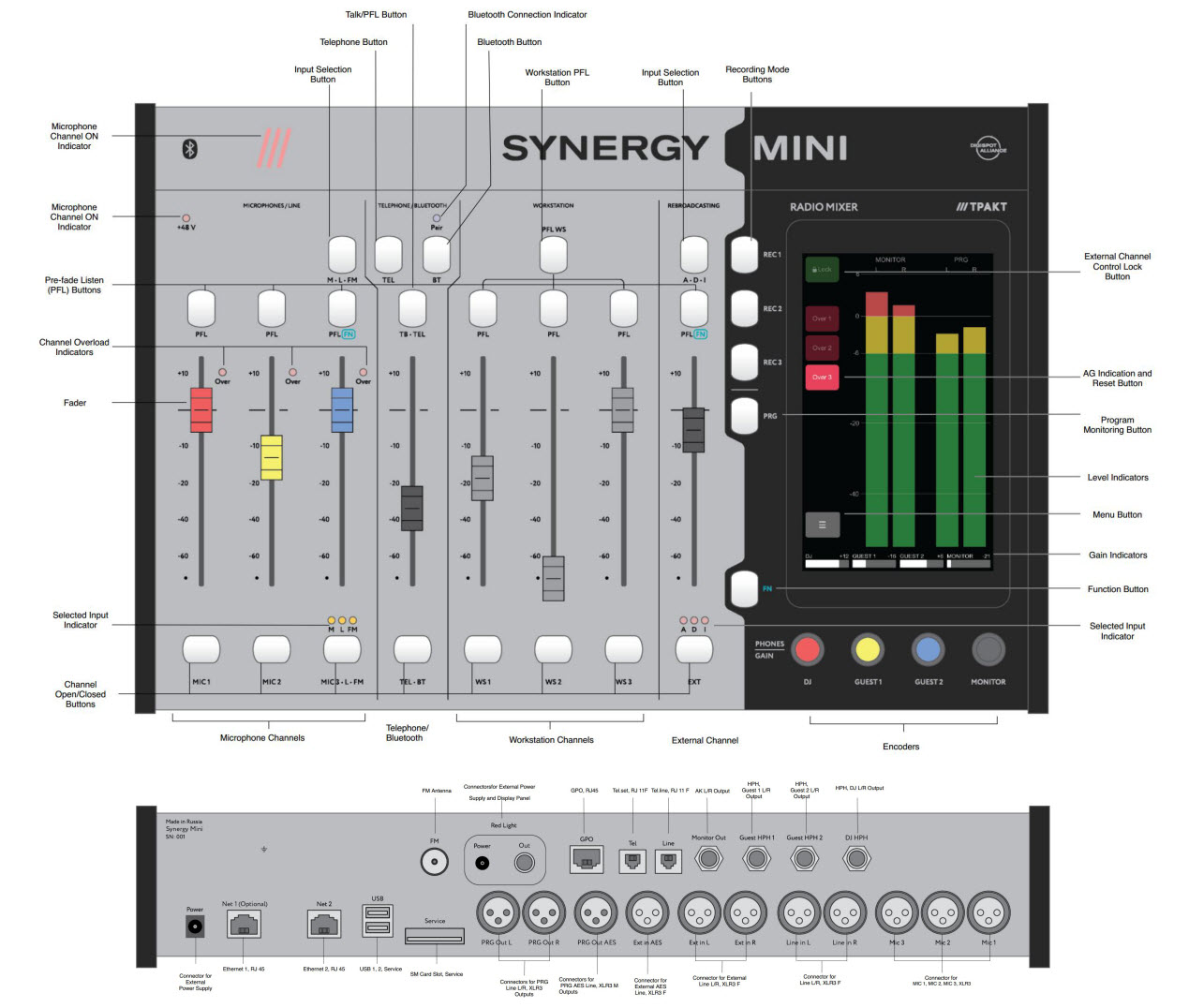

SYNERGY-MINI DANTE

מיקסר דיגיטלי לשידור, כולל תוכנת שידור, כרטיס DANTE 16 ערוצים, הייבריד ורסיבר FM מובנים.

Microphone input

Sensitivity: -77 dBu…+18 dBu
Input impedance: 2kOhm
Analogue gain: +6 dB … +68 dB (1 dB step)
Digital gain: -24 dB … +24 dB (0.5 dB step)
Frequency range: 20 Hz…20 kHz (<+/- 0.5 dB)
Input noise: Phantom power: +48 V (on/off)
Minimal input level: -40 dBu (max gain)
Maximal input level: +18 dBu (min gain)

Bluetooth input
Interface type: Bluetooth 3.0 (HSP and A2DP)

Analogue main
and Record line outputs

Max output level: +24 dBu (balanced, 0.01 THD)
Output resistance: 50 Ohm
Frequency range: 20 Hz…20 kHz (<+/- 0.2 dB)

Analogue stereo input

Maximal input level: + 24 dBu (balanced, THD 0.01)
Input resistance: >20 kOhm
Frequency range: 20 Hz…20 kHz (<+/- 0.5 dB)
THD:
Dynamic range: >100 dB
Crosstalk: >90 dB L/R (@ 1 kHz)

POTS input
Frequency range: 300 Hz…3400 Hz
Maximal input level: -12 dBu (at 1% THD)
Crosstalk: >18 dB (@1 kHz send/receive)

“Monitor out” output
Max output level: +18 dBu
Nominal output level: -2 dBu
Load resistance: >36 Ohm

Digital inputs/outputs
In/out resistance: 110 Ohm
SRC: 32…192 kHz
Input sensitivity: >0.2 V
Output level: >3.4 V (at load 110 Ohm)
Output signal: 24 bit
Output sample frequency: 48 kHz
Format: AES3

HPH output

Load resistance: >32 Ohm
Max output level: +10 dBu
Frequency range: 20 Hz…20 kHz

קישור לאתר החברה

מדריך למשתמש

מיקסר דיגיטלי לשידור All-in-One עם DANTE
