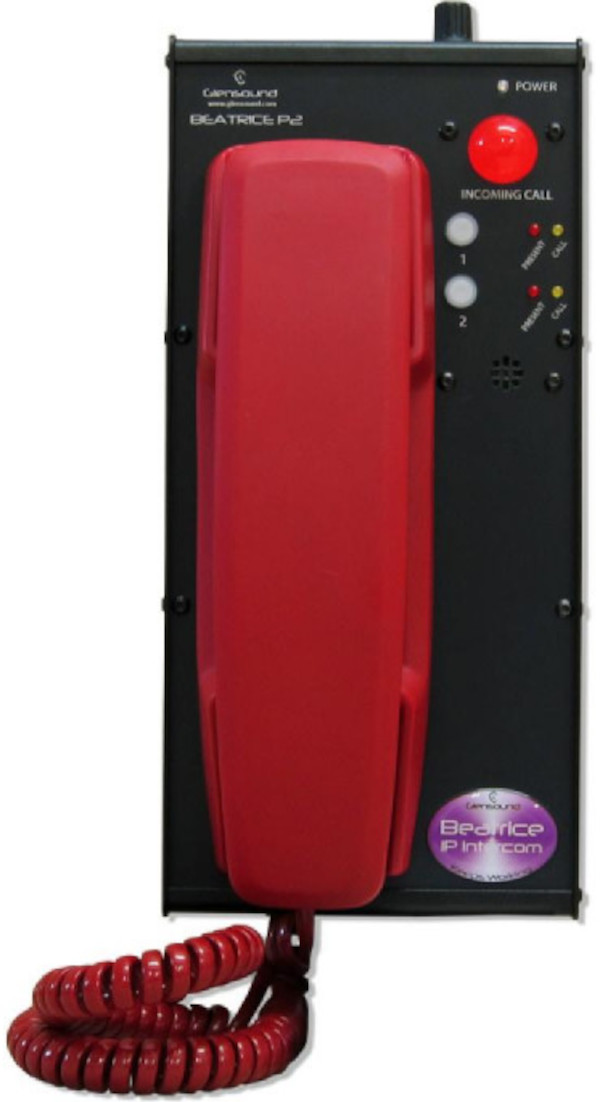

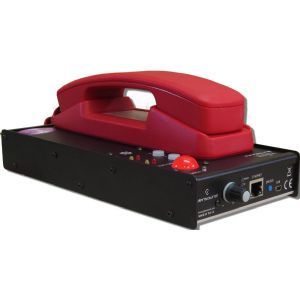

The Beatrice P2 is a two channel handset.

The user of the handset on the P2 unit can listen to two audio feeds from the network and send two audio channels out onto the network. Depending upon how the Dante® network has been routed, the incoming audio circuits and outgoing circuits can be different locations and the outgoing circuits can be routed to multiple locations.

Audio to the handset from the two network sources is routed to the telephone's earpiece only when the handset is off the hook. When the handset is picked up (off hook), the handset's microphone is turned on and two switches allow the operator to route the handset's microphone to one or other (or both) of the outgoing network audio channels.

The Beatrice P2 unit is fully compatible with other manufacturers' equipment using the Dante® protocol.

NETWORK / DANTE® INTERFACE

Physical Interface: 1 off RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kHz
Audio Resolution: 24 Bit
Transfer Rate: 100Mbps
Dante® Chipset: Ultimo UXT-01-004
Note: Audinate recommends no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network.
AES67 Compliant: The Audinate Ultimo chipset is AES67 compliant.

POWER

Consumption:

PoE: Powered by PoE Complies to: IEEE 802.3af-2003 Classification Class 0

PHYSICAL

Chassis Mechanics: All aluminium with laser etched panels and light textured black powder coated sides.
Telephone Handset: Interquartz 9826N
Size (Body excluding Beltclip): 120 x 280 x 95(inc handset 45 ex) mm (w x l x h)
Weight: 835g / 1lb 8oz
Shipping Weight: 2kg
Shipping Size: 62 x 41 x 17cms
Shipping Carton: Rugged export quality cardboard.

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

CALL CIRCUIT

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units & Studio technologies

INCLUDED ITEMS

Handbook: By download
RJ45 Network Cable: 2 metre Cat5 RJ45plug /RJ45plug cable
