מד Loudness מתקדם במסך מגע 7"

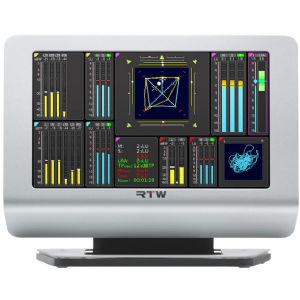

For environments where space is an issue, an audio metering unit of the TouchMonitor TM7 series is the ideal choice. Combining the simple and flexible operational concept and GUI of the TM9 with a 7" high-grade touch screen, the TM7 lets you configure the instruments of your choice with ease.

• Measures Analog, AES3, SDI, Dante and Ravenna AoIP depending on selected connector panel
• Up to 32 audio channels can be monitored
• Redundant network support with devices equipped with AoIP connectors

  Features
  • Easy and fast touch screen control with comfortable onscreen help
  • Highly flexible screen layout options with scalable instrument
  • Powerful DSP platform for parallel display of multiple instruments
  • 16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)
  • 3G-SDI interface for audio signals of 3G/HD/SD SDI data streams (depending on hardware version)
  • Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channels

  • Fully scalable, modular software approach for flexible configuration and easy on-site upgrades
  • Ethernet/LAN, USB, VGA and GPIO ports
  • 7" touch screen 16 : 9 TFT
  • Table-top unit, approx. 198 x 138.5 (163) x 46 (95) mm, W x H x D (with table-stand), incl. mains adapter
  • Flush mount versions available (please contact our sales department)
  • Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)
  • Other software modules available as options
