  מגבר אוזניות אישי

מגבר אוזניות אישי

Glen Sound Electronic

GS-HA013
מגבר אוזניות אישי עם שתי כניסות. שליטת ווליום נפרדת לכל כניסה מוזן מספק או סוללה . עם תופסן לחגורה או להתקנה תחת השולחן

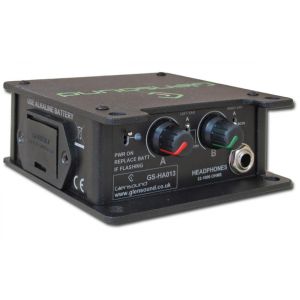

The GS-HA013 like other units in this range is small, robust and economical. It provides 1 off headphone amplifier in a compact format.

It builds on the successful GS-HA001 and adds switches to allow each input to be routed to the left ear, right ear, or both.

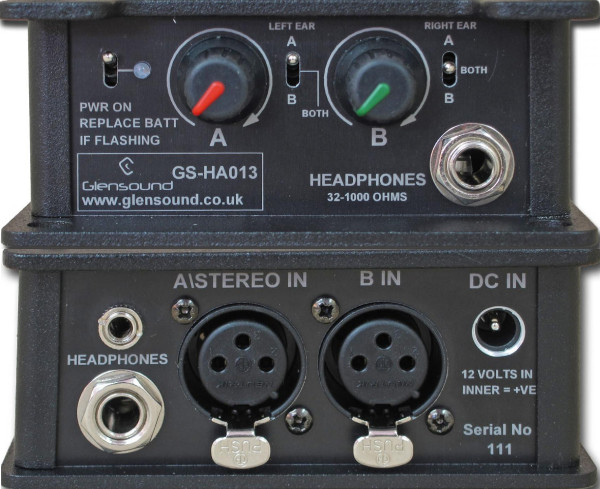

A toggle switch turns the unit on/off and a bright blue LED indicates that the unit is on and flashes when the battery is getting low.

Audio input is on 2 XLRs normally feeding left & right channels of the headphone amp. A switch is provided to allow an unbalanced stereo signal input on just 1 off these XLRs to be feed to both channels of the headphone amp.

A phase reverse of the right ear facility is provided (operation by a small toggle switch).

2 off headphone jack connections are provided (in parallel) each connector is suitable for use with both A and B gauge jack plugs.

features

  • Powered from 1 x PP3 long life battery
  • External DC power input
  • On/off switch
  • Blue power on LED Compact size with belt clip
  • 2 balanced inputs on rear panel XLRs
  • 1 input switchable to unbalanced stereo
  • Input gain controls
  • Seperate left/right headphone gain controls
  • Phase reverse right ear switch
  • 2 x Headphone jacks 6.35mm (A/B gauge)
  • 1 x Headphone jack 3.5mm
  • Headphone impedances of 32 - 1000 ohms
  • Each input can be switched from left ear, right ear, or bot

    PROVISIONAL
    BALANCED INPUT IMPEDANCE >50K Ohms
    UNBALANCED STEREO INPUT IMPEDANCE >22K Ohms (On each side)
    INPUT GAIN RANGE -20dBu to +8dBu
    FREQUENCY RESPONSE -1dBu @ 20Hz & 20kHz
    NOISE -54dBu (RMS 22-22kHz) @ Max Gain -85dBu (RMS 22-22kHz) @ Min Gain
    HEADPHONE IMPEDANCE 32 Ohms to 1K Ohms
    HEADPHONE LEVEL RANGE -20dBu to +10dBu
    MAXIMUM HEADPHONE LEVELS
    ****WARNING HIGH SOUND LEVELS CAN BE HARMFUL TO YOUR HEARING****
    +19dBu into 2K Ohms
    +18dBu into 600 Ohms
    +16dBu into 200 Ohms
    2 x HEADPHONE CONNECTORS 6.35mm A & B gauge Wired in Parallel
    POWER Internal: 1 x PP3 9 volt battery
    External: 12 to 20V @ < 44Ma 2.5 mm Jack (inner positive)
    BATTERY LIFE
    BATTERY INDICATOR Steady blue LED indicates good battery Flashing blue LED indicates low battery
    OVERALL SIZE 43 x 101 x 103 mm (H x W x D)
    UNIT WEIGHT 380 Grams (including battery)
