מגבר אוזניות ארבע ערוצי כניסה שני מיקסים ליציאה בשש שליחות נפרדות

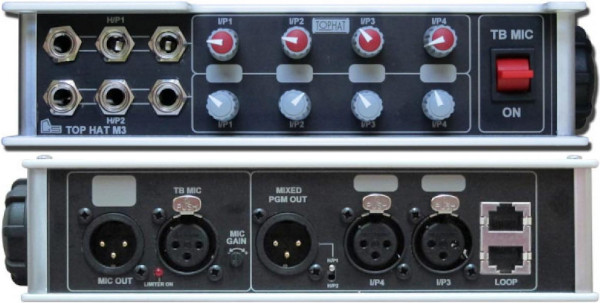

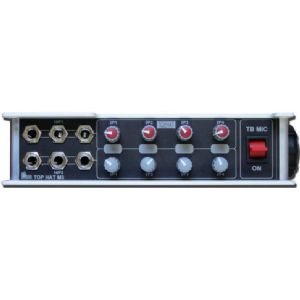

The Top HAT M3 is a compact mixing headphone amplifier designed to provide flexible features for monitoring in an outside broadcast environment.

Two Headphone Amplifiers
The Top HAT M3 features two separate headphone amplifiers. Each amplifier has 3 individual 6.35mm jack sockets for headphone monitoring, therefore the unit provides monitoring for 6 pairs of headphones.

Four Input Mixer
Both headphone amplifiers are fed via a mix of the 4 common inputs. The inputs are on XLRs and there are variable POTS for each input to create the required mix. There are 2 sets of the 4 variable POTS allowing separate mixes to be created for each of the two headphone amplifiers.

Outputs
In addition to the 3 x 6.35mm jack sockets available for headphone monitoring on each headphone amplifier, there is also a master output available on XLR; this output can be switched to either MIX 1 or MIX2

Talkback
There is an XLR input for a talkback mic with adjustable gain control and a compressor/limiter. The talkback mic is switched to the XLR talkback mic output via a front panel lever key. The lever key is momentary when pushed down and locks when pushed up.

Loops
The Top HAT M3 features 2 x RJ45 connections for looping audio between units. The input connection is in parallel to the main inputs and contains the audio for the 4 inputs. The output connection simply loops the 4 audio inputs for linking to further units using normal CAT5 cable.

Power

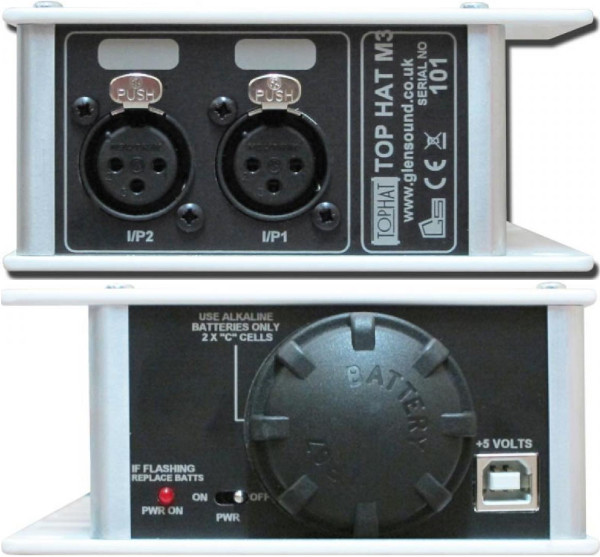

The Top Hat M3 is powered by 2 x C cell batteries or optional external DC power. As the battery level decreases there is a lower power LED for indication; as the level drops, the LED will start to flash faster and faster.
