JS3

מפצל מיקרופון פסיבי 1:3 שתי יציאות על גבי שנאי הצפה Jensen, ויציאה אחת דיירקט

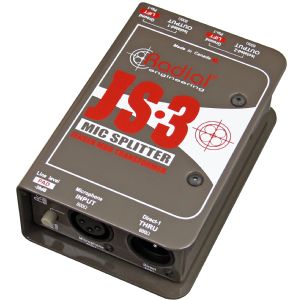

The JS3 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.

Specifications
Audio circuit type:	Passive mic/line splitter, transformer based
Transformer:	JT-MB-DPC, 1:1:1 ratio
Number of channels:	Three-way splitter (one in/three out)
Frequency response:	20Hz ~ 20KHz (+0dB/ -2dB)
Dynamic range:	140dB
Total harmonic distortion:	0.0005% @ 1kHz
Phase Deviation:	0.7° @ 100Hz; 2.8° @ 20Hz
Input Impedance:	2.4k Ohms, unbalanced
Output Impedance:	2.4k Ohms, unbalanced
Maximum Input:	+25dBu @ 1kHz

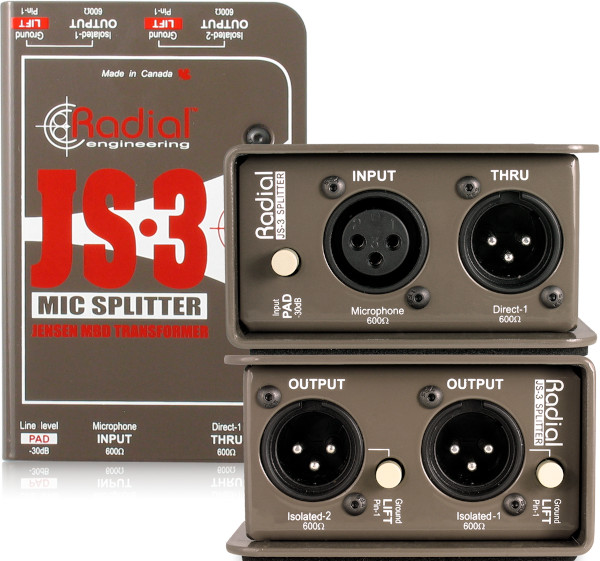

Features
Input pad, Ground lift
Input Connectors:	XLR-F in
Output Connectors:	Two isolated outputs
General
Construction:	14-gauge steel chassis & outer shell
Size (L x W x D):	3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight:	1.55lb (0.7kg)
Shipping size (L x W x D):	4" x 3" x 6.5" (102 x 76 x 165mm)
Shipping weight:	1.92lb (0.87kg)
Power:	Passive, no power required
Conditions:	For use in dry locations only between 5°C and 40°C
Warranty:	Radial 3-year, transferable

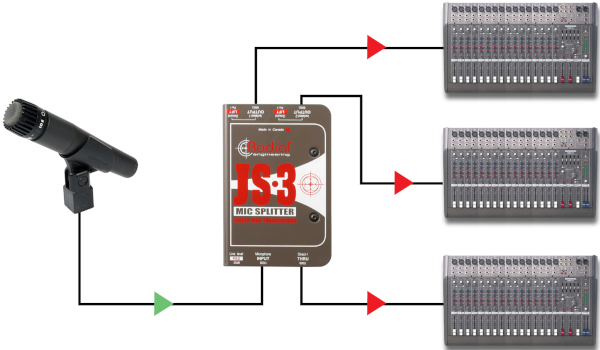

Using the JS3 to feed three mixers

Sometimes, you need to feed the main mixer, stage monitors and a recorder at the same time. The JS3 makes hook-up easy with XLR input, direct out and two isolated outputs. These eliminate ground loops when connecting multiple mixers at the same time.
