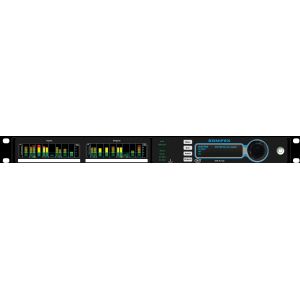

מיקסר מוניטור RAVENNA

Category: AES67/Dante AoIP Products.
Product Function: Mix and route analogue & AES67 stream inputs to analogue & AES67 stream outputs.
Typical Applications: A powerful analogue & AES67 mix engine which allows for multiple applications: 8 output analogue zone mixer, 8 channel clean-feed generator, 64 channel AES67 stream distribution amplifier, IFB distribution to analogue belt-packs & AES67 streams, 8 channel headphone distribution system (with AVN-HA1 units).

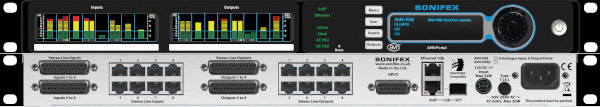

• 8 x stereo line inputs and 8 x stereo line outputs on D-type sockets with AES59 analogue pinout, paralleled with 8 x RJ45 connectors using StudioHub® pinout.
• ‘T’ version has audio I/O on terminal blocks.
• ‘D’ version has input & output metering.
• Input/output full-scale line-up.
• Responsive webserver software router/mixer.
• Up to 8 AoIP input streams with a maximum of 16 channels to be routed.
• Up to 8 AoIP output streams with a maximum of 8 channels each (i.e. 64 channels).
• Dual 1Gb Ethernet & 1Gb SFP port.
• Dual AC & DC power supply inputs.
• 10 user assignable GPIO ports.
