מיקסר מוניטור RAVENNA

Category: AES67/Dante AoIP Products.
Product Function: Mix and route AES3 & AES67 stream inputs to AES3 & AES67 stream outputs.
Typical Applications: A powerful AES3 & AES67 mix engine which allows for multiple applications: 8 output AES3 zone mixer, 8 channel digital mixer, 64 channel AES67 stream distribution amplifier from digital sources, 8 channel headphone distribution system (with AVN-HD1 units).

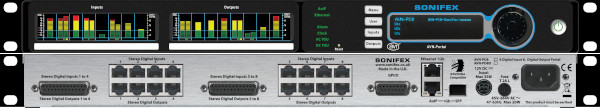

• 8 x stereo digital AES3 inputs and 8 x stereo digital AES3 outputs on D-type sockets with AES59 pinout, paralleled with 8 x RJ45 connectors using StudioHub® pinout.
• ‘T’ version has audio I/O on terminal blocks.

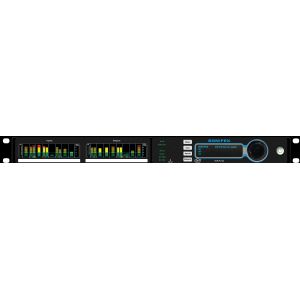

• ‘D’ version has input & output metering.
• Input and output gain adjustment.
• Responsive webserver software router/mixer.
• Up to 8 AoIP input streams with a maximum of 16 channels to be routed.
• Up to 8 AoIP output streams with a maximum of 8 channels each (i.e. 64 channels).
• Dual 1Gb Ethernet & 1Gb SFP port.
• Dual AC & DC power supply inputs.
• 10 user assignable GPIO ports.
