  פרוססור שידור מתקדם

פרוססור שידור מתקדם

Inovonics

719N
פרוססור שידור מתקדם עם RDS מובנה ושליטה מווב

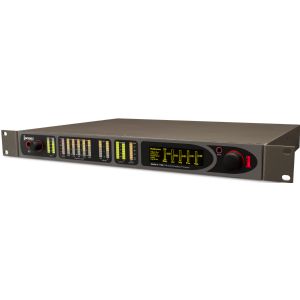

The DAVID IV 719N is the fourth generation processor in our DAVID (vs. Goliath) series of FM and HD Radio™ air-chain processors. Our streamlined, 100% DSP-based audio engine gives you total leverage over the most important sonic ‘signature’ parameters, while smart controls allow you to enhance program material quickly and effectively.

Processing includes 5 bands of dynamics compression with equalization, intelligent gain-riding AGC (Automatic Gain Control), Bass and Stereo Field Enhancements, and our proprietary PIPP™ (Polarity Independent Peak Processing) limiter.

Processing is integrated with a high-performance stereo generator, featuring multiple independent level outputs, and an RDS sync with active and metered internal combining.

Also included are 25 factory presets optimized for popular contemporary world formats and 20 customizable user presets that can easily shared over station networks.

The DAVID IV 719N may be set up and controlled using the intuitive front-panel menu display and jog wheel, or through an intuitive Network Web GUI.



Specifications

PERFORMANCE SPECIFICATIONS

Frequency Response

  • Composite/MPX Output: ±0.25dB, 20Hz–15kHz assuming the use of a lab-quality FM-multiplex decoder with the appropriate de-emphasis characteristic
  • L/R Line Outputs: ±0.25dB, 20Hz–15kHz through an appropriate de-emphasis network in the FM mode; ±0.25dB, 20Hz–20kHz in the Flat mode
  • AES Digital Output (Digital Input): ±0.25dB, 20Hz –15kHz through an appropriate de-emphasis network in the FM mode; ±0.1dB, 20Hz–20kHz in the Flat mode

Noise (unweighted)

  • Composite/MPX Output: SNR >85dB with carrier modulation at maximum output level through an appropriate de-emphasis network
  • L/R Analog Line Outputs: Residual Noise better than 100dB below the output clipping point(through an appropriate de-emphasis network in the FM mode)
  • AES digital Output (Digital Input): Residual noise better than 130dB below 0dBFS (through an appropriate de-emphasis network when indicated

Distortion

  • Composite/MPX Output: <0.01% THD using an appropriate de-emphasis network
  • Line Outputs: <0.06% THD in digital and analog Line Outputs using an appropriate de-emphasis network when indicated

Stereo Separation

  • Composite/MPX Output: >65dB, 20Hz-15kHz assuming the use of a lab-quality FM-multiplex decoder with the appropriate de-emphasis characteristic. Linear Crosstalk (main/sub or sub/main):.78dB
  • L/R Analog Line Outputs: At 1dB below the output clipping level, >100dB through an appropriate de-emphasis network in the FM mode; unweighted in the Flat mode
  • AES Digital Output:At 0dBFS, >130dB through an appropriate de-emphasis network in the FM mode; unweighted in the Flat mode (using the Digital Line Input)

Program Signal Latency

≤4.2 milliseconds, any input to any output in any operating mode

19kHz Stereo Pilot Protection

65dB with reference to 9% pilot injection

38kHz Suppression

80dB with reference to 100% carrier modulation

57kHz RDS Subcarrier Protection

65dB with reference to 5% RDS sub-carrier injection

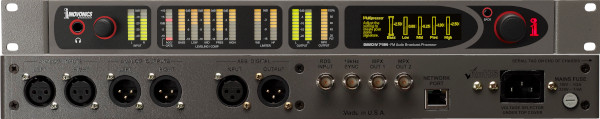

REAR PANEL APPOINTMENTS

Digital Line Input

The AES3 stereo input (XLR) accepts program sources at sampling rates of 32kHz, 44.1kHz, 48kHz and 96kHz; 16/24-bit. Input gain is adjustable for average program levels between -5dB and -35dB, re: -20dBFS.

Analog Line Inputs

L/R active balanced/bridging (XLR) inputs accept average program line levels between -15dBu and +15dBu; +26dBu max peak level. Impedance is 600 ohms

Line Outputs

The Digital and Analog Line Outputs may each be configured independently for 20kHz flat response, or for 15kHz ‘FM’ characteristics, either with pre-emphasis or normalized to flat.

Digital Line Output

The AES3 (XLR) stereo output may be adjusted between -20dBFS and 0dBFS, corresponding to 100% (peak) carrier modulation. The output sampling rate may be set to follow the Digital Line Input or forced to 32kHz, 44.1 kHz, 48kHz or 96kHz. Sampling resolution is 24 bits.

Analog Line Outputs

Active balanced (XLR) outputs are adjustable between -10dBu and +24dBu (+21.5dBm), corresponding to 100% carrier modulation; source impedance is 600 ohms.

Composite/MPX Output

Two unbalanced (BNC) outputs are independently adjustable between 0.8V p-p and 8V p-p (+11dBu), corresponding to 100% carrier modulation; source impedance is 75 ohms. Pre-emphasis may be set to 75μs, 50μs or OFF.

RDS Input

Unbalanced/bridging (BNC) input accepts a 57kHz RDS subcarrier at any level between 0.5V p-p and 5.0V p-p for a typical injection level of 5% of total carrier modulation.

19kHz RDS Sync

When RDS is enabled, the Sync Output (BNC) delivers a 5V p-p TTL-compatible square wave at the 19kHz pilot frequency; 75-ohm source.

Network Port

A RJ45 jack accepts TCP/IP network connections for remote setup and operation of the DAVID IV 719N using any Web enabled device and SNMP is fully supported.

Headphone Jack (Front Panel)

A quarter-inch (TRS) headphone jack allows the user to monitor the processed program audio. A volume control next to the jack adjusts the listening level.

AUDIO PROCESSING FEATURES

Program High Pass

A user-programmable high-pass filter attenuates sub-audible noise that could compromise modulation efficiency. The filter is adjustable between 20Hz and 65Hz.

AGC

Unobtrusive, gated ʻgain-ridingʼ AGC is quasiaverage- responding with a capture/correction range of ±18dB. Positive AGC gain may be truncated to any value between +18dB and 0dB; the AGC correction rate is programmable.

Stereo Enhancement

This dual-action utility effectively broadens the soundstage for the stereo program and the centerchannel ʻsoloʼ component independently.

5-Band ʻMultipressorʼ

Program audio is split into five frequency bands. Each band imparts both dynamic compression and adjustable static gain to afford fixed equalization and other ʻsignatureʼ control of the program audio.

Bass Augmentation

Sub-bass program frequencies undergo independent dynamic compression, expansion, selective clipping and filtering for control over both static ʻRumbleʼ and dynamic ʻPunchʼ of bottom-end components.

PIPP™ Peak Limiter

Inovonicsʼ exclusive Polarity-Independent Peak Processing assures optimum modulation of the FM carrier or other delivery channel.

ITU Multiplex Power Control

The Peak Limiter section may optionally be configured to control the r.m.s. power of the composite multiplex signal to meet the European Standard ITU-R BS.412.9.

Adaptive Pre-Emphasis

Fast HF limiting and distortion-cancelled clipping are each utilized to best advantage in providing independent amplitude control of program frequencies subjected to the FM pre-emphasis curve. This helps preserve program brightness and clarity despite power bandwidth constraints native to FM broadcasting.

Composite Clipping

At the userʼs discretion, up to 3dB of clipping may be applied to the composite/baseband signal. Clipping is performed before the injection of the stereo pilot and RDS subcarrier.

HD RadioDelay

The composite/MPX output of the DAVID IV may be delayed between 1ms and 9.999 seconds in 1ms increments, relative to the analog and digital program line outputs when they are set to the 20kHz (Flat) output mode. When set to the FM mode(s), the line outputs are subjected to the programmed delay as well.

THE USER INTERFACE

Front-Panel

A front-panel graphic display and jog wheel allow easy, menu-guided in-situ setup and operation of the DAVID IV. LED-bar displays indicate in/out levels and audio processing action.

Network Control

Full function ‘responsive’ Web interface works on any desktop, tablet or smart phone. SNMP support allows control and monitoring of all settings. Emails can be sent for various alarm conditions.

Processing Presets

25 factory presets are provided and optimized for popular world formats, and an additional 20 custom user settings can easily be saved and shared across station networks.

MISCELLANEOUS

AC Mains Requirements

105–130VAC or 210–255VAC, 50/60Hz; 8 watts

Size and Weight

1¾”H x 19”W x 13”D (1U); 9 lbs. (net) / 12 lbs. (shipping)

Environmental

Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
