יחידת מוניטור SDI וIP

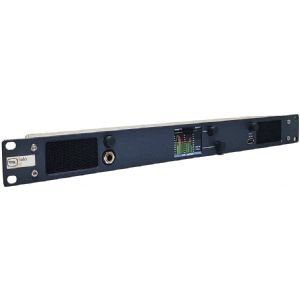

Whether monitoring redundant SDI infrastructures or redundant IP networks, the MPA1-SOLO-IP provides confidence
monitoring without compromise.

• Helps make the transition to IP seamless, providing peace of mind and ease of use in even the most demanding environments.
• Features 2 SFP cages the MPA1 Solo IP allows redundant connectivity to ST-2022-6 / ST-2110 IP networks, in addition to SDI, AES and Analogue inputs also allowing for hybrid monitoring environments.
• Tight integration with your control system is made possible through SNMP, Ember+ and NMOS.

specifications:

• Height: 1RU
• Dimensions: 483mm x 45mm x 100mm
• Weight: 1-4kg
• Display: Audio Metering
• 16 Audio channels
• Signal to Noise Ratio: 72dB (+4dBu input level, THD+N A weighted)
• Peak Acoustic Output: 90dB @ 1foot
• Frequency Repsonse: 40Hz to 20kHz +/- 1dB
• Power: 85-264V ~ 50/60Hz, 0.75A – 0.5A Max 30W
• Unit control: SNMP, Webpage
• IP control: In Band NMOS, Ember+, Embrionix RESTful API
• SDI inputs: 3G/HD/SD-SDI (SMPTE 424M, 292M, 259M)
• AES 3id: SMPTE 276M
• Balanced analogue Inputs: >60k Ohms
• Balanced Analogue Outputs: Fixed or Variable
• SFP cages: Non-MSA Embrionix Modules
• Upgrades: VIA USB
