מיקסרים דיגיטלייים להתקנות

DSPECIALISTS

Harvey

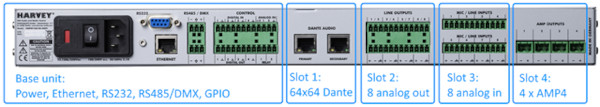

מיקסר דיגיטלי להתקנות בארכיקטטורה פתוחה 8 כניסות ו8 יציאות אנלוג ועוד 64*64 ערוצי DANTE משולב במגבר 4 יציאות

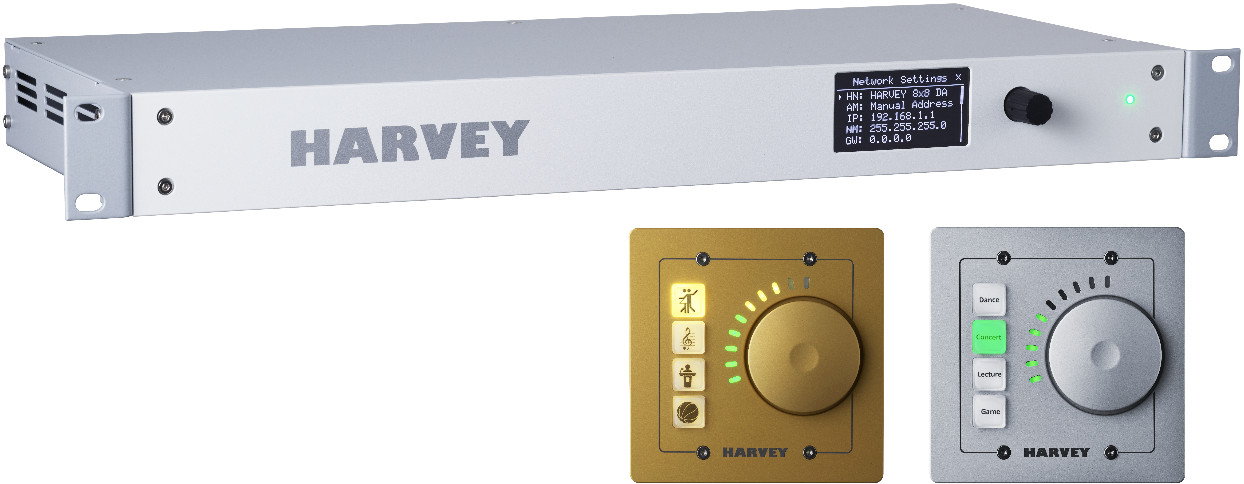

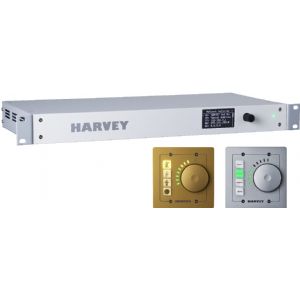

Audio and Control Matrix HARVEY

HARVEY is a flexible audio and media control matrix and a key component for PA systems and conference systems. It is equipped with analog audio inputs and outputs as well as a large number of different control interfaces and the ideal matrix for conference rooms, home cinemas, museums, educational facilities, multipurpose rooms and theatres.

Controllable

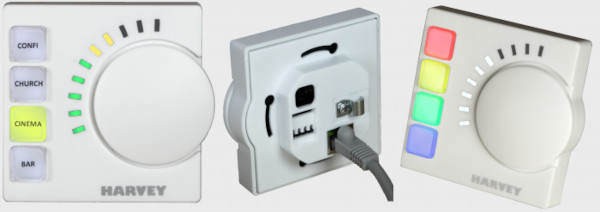

Due to the varied control interfaces HARVEY can connect to very different devices and act as a central control unit for audio, lighting and media technology. It converts the data between the interfaces and eliminates the need for additional converters. In addition to the Remote Control RC4 also all established media control systems are suitable for controlling HARVEY and all of the other devices connected to it.

User Interface

The user interface of HARVEY is characterized by its clarity and simple structures. It allows for intuitive use and enables every user to develop detailed planning layouts for complex projects in only a few steps.

The HARVEY-Composer's key features:

Bundling of parallel lines
Insertion of signal processing per drag & drop
Layout with automatic adjustment and right-angled wiring arrangement
Summing up of logical functions into groups
Separate layers for audio and control paths
With the HYPERMATRIX® functionality, cross-device projects can be conveniently configured as if it were just a single device.
Hardware processor load in offline mode
No compiling necessary
