DANTE AV

Powered By DanteAV™ ULTRA Module

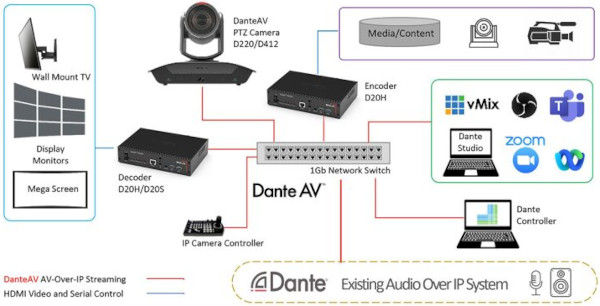

Designed to seamlessly integrate into an existing Dante audio ecosystem, the D412/D220 PTZ is managed using the Dante Controller Software with flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues. More information about Dante AV.

Dante Ecosystem Friendly

■ Instant compatibility with over 3000 existing Dante-enabled products.
■ Unified control of camera’s video and audio streams using familiar tools - Dante Controller Software.
■ No need to replace network infrastructure. Dante AV works with already installed, cost-effective 1Gbps network gear.
■ Uses Dante Controller and endpoints so you can easily click to check video and audio control routing.

Dante Controller and DDM Supported

■ Unified control of camera audio and video using familiar tools - Dante Controller and Dante Domain Manager (DDM).
■ Uses Dante Controller and (DDM) and endpoints so you can easily click to check video and audio routing.

JPEG 2000 enables Dante AV to:

■ Create 4K multi-screen environments, allowing audio to be routed wherever desired
■ Deliver perfect lip-sync during live presentations with video thanks to ultra-low latency
■ Easily deploy and manage video walls at lower cost thanks to the utilization of Cat 5e cables and switchers
■ Simplify installation and use of conference rooms that combine video and audio media.
Quoted from www.intopix.com

Lossless image with extremely low codec latency

■Pair with Bolin's D10H Dante AV Decoder, it transports up to UHD/4K60 4:4:4 video output with ultra low latency and lossless quality.
■ Bolin’s D412/D220 incorporates an optimized implementation of the popular JPEG2000 codec in FPGA, which delivers visually perfect lossless image at 4K60 with < 10ms codec latency.

100% Synchronized video and audio

Bolin’s D412/D220 PTZ camera integrated Dante’s sub-microsecond 100% synchronization to video and audio, a Dante single network clock keeps the camera video in sync regardless of the number of endpoints, making Lip-Sync problem a thing of the past.

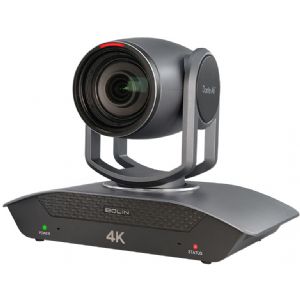

4K60 and Full HD PTZ Models

Two models are available:

■ D412 PTZ provides up to 4K60 3860x2160p: 60/59.94 image resolution with 12x optical zoom.
■ D220 PTZ provides up to Full HD 1920x1080p: 60/59.94 image resolution with 20x optical zoom .

Remote Control & Monitoring

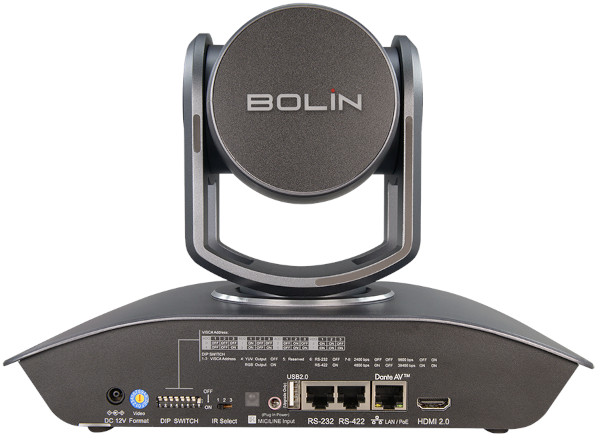

Provides local serial RS232/422 control and DanteAV Serial-Over-IP and Visca Over IP remote site control via Bolin's Dante AV Decoder to precisely operate camera PTZ movements, presets and full image parameter settings. Full IR control on remote site.

IP Simul-Stream, Dante AV-Ultra™ & RTSP/RTMP Streaming

■ In addition to Dante AV-Ultra™ streaming, both D220 and D412 PTZ camera support RTSP streaming simultaneously with web browser viewing and control capability to have remote accessibility. ■ It supports RTMP for live streaming.
■ Cross-browser supports Microsoft Edge, Google Chrome, Firefox, and Safari Multi-browser with HTML5.

Software Based Dante Studio (RX) Streaming

■ Dante Studio (Dante Av RX) brings Dante video features to PCs.
■ Extend the functionality of software applications with Dante Video RX, Dante AV native PTZ camera customers can now stream Dante AV video using vMIX, OBS, Teams, Zoom and other PC streaming platforms for live production and a complete networkable AV workflow.
■ Use Dante Studio to have the streaming of Bolin D412/D220 PTZ camera image worked with video software display platform.

מצלמת DANTE AV ULTRA PTZ

Bolin Technology
