  מצלמת DANTE AV-H PTZ

מצלמת DANTE AV-H PTZ

Bolin Technology

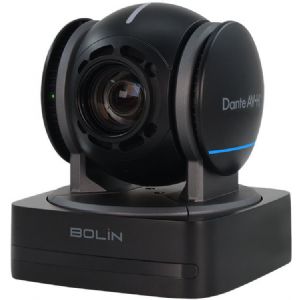

Dante AV-H PTZ Camera
מצלמת PTZ שני דגמים זום*10 או זום*20 חיבוריות על גבי DANTE AV-H מוזן חשמל POE++




Bolin was in a unique position to be among the very first to create
Dante AV-H™ PTZ cameras. Dante AV-H™ is a software-based
solution, it offers lower cost and network bandwidth requirements,
with many of the core features of Dante AV™. These include
compatibility with Dante Controller, up to eight channels of Dante audio,
and Interoperability with AV-over-IP products from multiple vendors.


Just like Bolin’s Dante AV Ultra™ line of products, these cameras are designed
to seamlessly integrate into an existing Dante audio ecosystem. The D2-210H/
D2-220H PTZ camera is managed using Dante Controller Software, providing flexible,
independent audio and Dante AV™ video routing across your network. Dante AV-H™
video can be sent to Dante Studio™ (Dante Video RX/TX and Viewer) for applications
like live studio, video production, video conferencing, and educational cases.


It is a great video device that is fully compatible with the existing Dante system for Dante audio devices to work with.

Features

  • High-Quality Imaging - Full HD

    Bolin’s Dante AV-H™ PTZ cameras are equipped with Sony sensor to provide brilliant, high-quality images in 1080p60 resolutions with 10x and 20x optical zoom.

  • Video Output

    Deliver Dante AV-H™ version IP streaming video to the Dante network, and local HDMI video and USB streaming output to conventional workflows in FHD. D2-220H also provides 3G-SDI, lossless baseband video for live production use.

  • Multicast Mode

    Point to Multipoint and Point-to-Point Distribution – supports both unicast and multicast video distribution.

  • Video Settings

    Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, image stabilizer, flip/mirror, and more with configurable video settings.

  • Audio

    HDMI/SDI/USB embedded high–quality audio and Dante AV™ video streaming embedded audio with support for Mic-in and Line-in audio input. The audio that is input to the camera can be routed within a Dante audio over IP system.

  • PTZ Movement

    Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset- Image parameter setting restore with presets and quick access operation.

  • Ease of Installation and Use

    Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing Dante Audio-Over-IP system.

  • Always Up to Date

    Firmware updates, upgrade via USB and IP interface to keep Dante AV-H camera features and performance up to date.
