כרטיסי קול חיצוניים

Solid State Logic

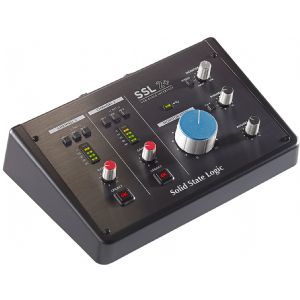

SSL-2+

כרטיס קול חיצוני עם שתי כניסות וארבע יציאות

Overview

2-In/4-Out USB-C Audio Interface
2 x SSL-designed microphone preamps
Legacy 4K - analogue colour enhancement, inspired by classic SSL consoles
2 x Professional grade, high-current headphone outputs: create a second independent headphone mix
SSL Production Pack software bundle
24-bit / 192 kHz AD/DA Converters
Easy-to-use Monitor Mix Control
Balanced monitor outputs
Additional unbalanced RCA outputs for easy connection to DJ Mixers
MIDI I/O
USB 2.0 bus-powered audio interface for Mac/PC
Loopback feature available via firmware update

System requirements and Specs:
Mac OS 10.11 and above | Class-Compliant, Plug-and-play
Windows 10, Windows 11 | Install included ASIO/WDM driver

Connectivity
USB 2.0 Type C Connector (Box includes Type C to C and Type C to A)

Mic Preamps
-130.5 dBu EIN
Gain Range: 62 dB

Instrument/Line
Max Instrument Input Level: +15 dBu
Max Line Input Level: +24 dBu
*Specs (Measured to AES17 Standards)

Monitor Outputs
Dynamic Range: 112 dB
Max Output Level: + 12.5 dBu

Headphone Output(s)
Dynamic Range: 111 dB
Max Output: +10 dBu

Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz

ASIO is a trademark and software of Steinberg Media Technologies GmbH

קישור לאתר החברה

עלון המוצר
